In this article, I will describe the Reporting Feature on your Telnyx customer portal and what you can do there.
Video Walk-through for Reporting Requests
Coming soon! This walk-through will demonstrate the usage of our Reporting tools.
Step by Step Guide to Detail Requests

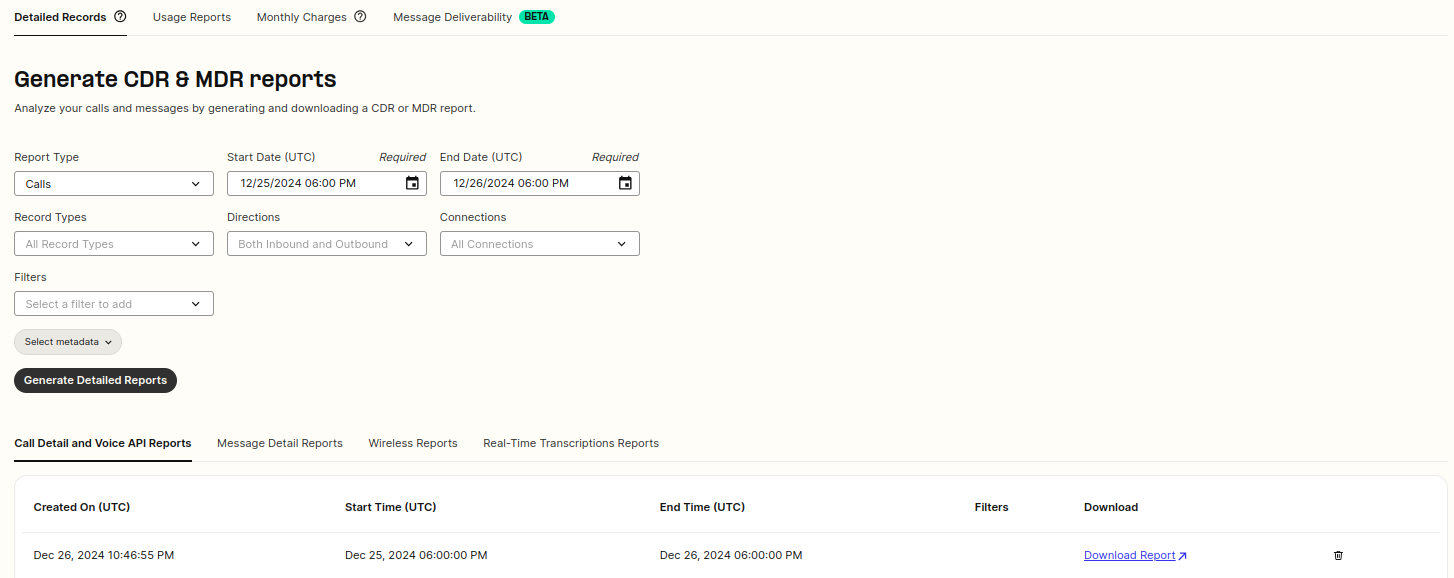

The reporting/detail requests section can be found here. Once on this page you will be faced with the following table, from here you can tweak the various filters and variables available for detail requests
Report Type: This option defines the Telnyx product you are running the report for. The options available are:
The kind of information returned and reporting options will be different based on the report type.
Filters: This dropdown allows us to add some additional filters to the report, your options are CLD, which allows you to filter by destination number, CLI, which allows you to filter by calling number, TAG, which allows you to filter by the TAG(s) you have applied to DIDs/Voice profiles and Billing Groups which allows you to filter by the billing group assigned to DIDs/Voice profiles.
Start/End Time: These two options will be used to define the time range you would like your report to cover. You should first specify a start date and time as this is required, the end date will automatically be set to the current time but can be overridden to a specific time.
Record Types: This defines the types of records available in the final report. Your options are Complete, Incomplete, Errors or All
Call/Message Type: This option defines the type of message or calls you would like returned in the report, you can choose between only showing Outbound calls or inbound calls or you can choose to include Both
Connections/Messaging Profiles: From here you can choose to only display calls/messages that were associated with a connection(s)/profile(s) or you can choose to include all connections/profiles
Metadata: From here, you can customise the different headers that will be returned in the report, in total there are 35 different data headers available, by default all are included.
Once all options are customised to your needs, you can hit Request Detail Report and your report will start generating. You can see the status of the report under Download. If there is a download link then it is available, if it states "expired" then the report download link has expired, however, this can be regenerated from the refresh icon to the right of the report. You can also see additional details about the report, such as the time the report was created, the time range for the report itself, and any Filters can be viewed if they were included.
