Understand Telnyx SMS MDR Report Log

You can check your MDR (message detail record) for every message sent or received.

Telnyx Sales avatar
Written by Telnyx Sales
Updated over a week ago

What is an MDR?

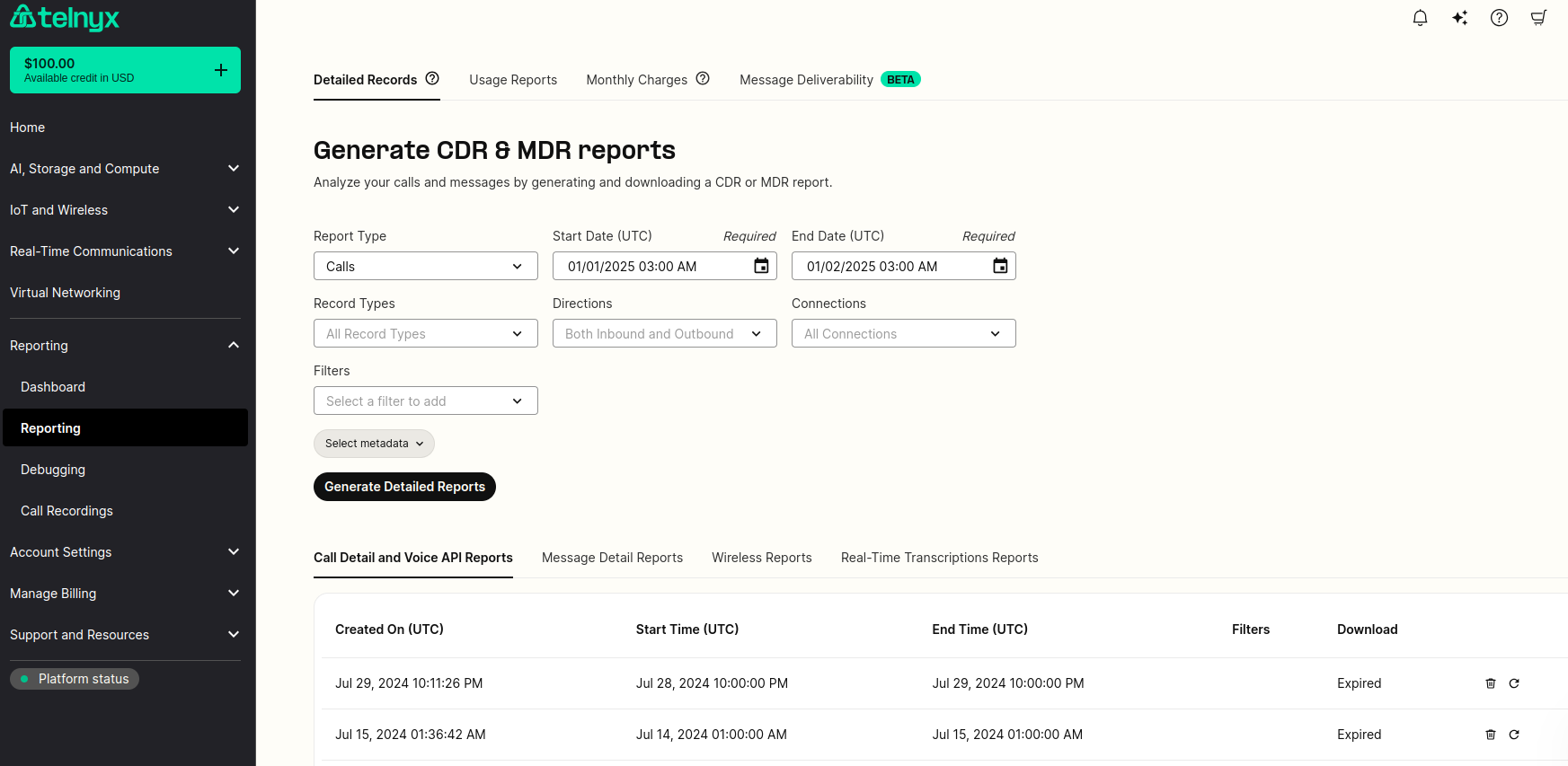

For every sent or received message, an MDR (message detail record) will be written. You can access and generate these report logs under Reports (left hand side navigation bar) -> Reporting in your Mission Control Portal Account as seen below.

Reporting section in the Mission Control Portal.

What are the different fields of information available?

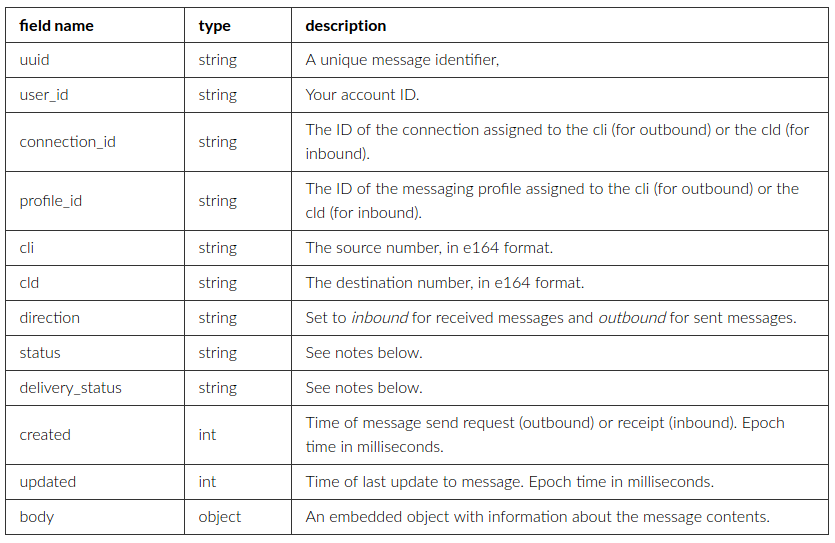

MDRs are stored as JSON objects. These are the most important fields contained in each MDR:

The most important fields in Message Detail Records containing field name, type, and description.

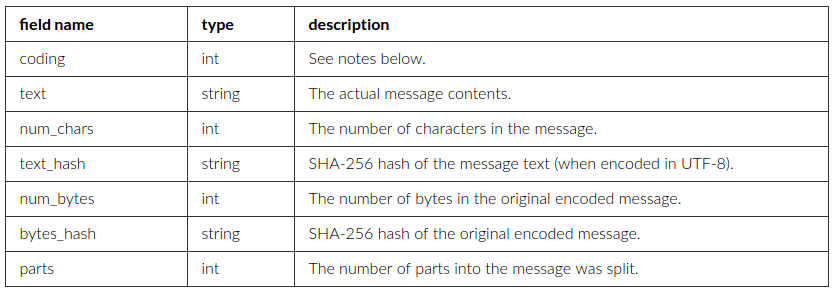

The embedded body object contains the following fields:

Picture of various fields contained in an embedded body object.

For privacy reasons, a message’s text is only stored for up to 7 days before it is wiped. At that point, the hash fields can be used to identify messages.

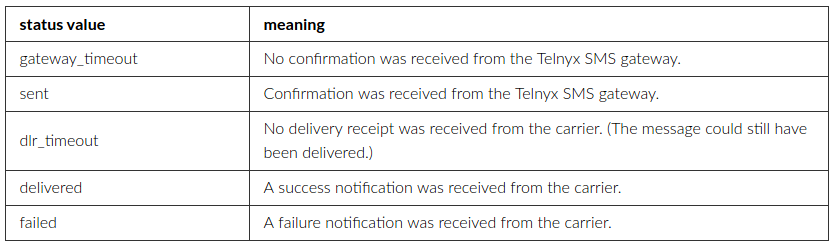

For sent messages, the possible status values are:

Pictorial representation of possible status values for sent messages.

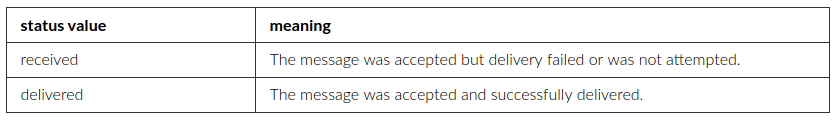

For received messages, the possible status values are:

Picture of the possible status values for received messages.

The delivery_status field is used to give further details about the delivery confirmation (outbound) or delivery attempt (inbound).

Message coding

The coding field is an integer representing the message’s encoding. It will typically have one of the following values:

A message coding field  with various values in a tabular form.

When you send messages, the encoding is determined on the basis of the characters in the message body. If possible, GSM 7-bit is used; otherwise, UTF-16 is used.

Message parts

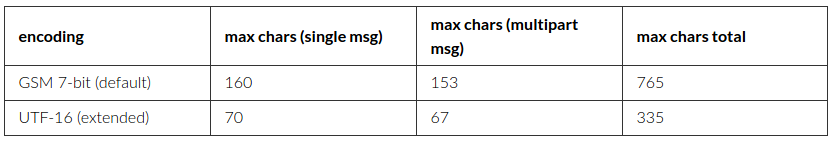

Long messages must be divided into parts for transmission. The size of each part depends on the encoding.

Telnyx SMS MDR Report Log For Message Parts

For outbound messages, there is a maximum message size of 10 parts.

Don't forget that billing takes place on the number of message parts.

rate = price per message + carrier fee for one part.
cost = rate * message parts.

Billing and Rate Limiting are applied based on the number of parts per message.
