The Positron line of IP Phones is a SIP phone with wideband audio support, dual Ethernet port and integrated Power over Ethernet. It is an option that is impressive, yet affordable. All the IP Phones are optimized for executives, administrative assistants and those working with bandwidth-intensive applications on collocated PCs. Line keys can also be configured as IP PBX features such as BLF, SCA, Intercom, Call Pickup, Call Park and many others. The high resolution screen and the HD voice features provide a high quality visual and authentic audio experience.
Note: Aside from minor cosmetic UI differences, the configuration steps across Positron IP phones are identical. Therefore this document supports the configuration of the following Positron models:
|
Additional documentation:
Positron IP phone comparison
Positron's IP PBX brochure
Device warranty information
Positron sales and support
User manuals for:
IP304
IP304C
IP408
IP410C
IP410G
Instructions for configuring your Positron IP304 phone
In this activity you will:
(OPTIONAL) Import a TLS certificate
(RECOMMENDED) Change the default admin login credentials
Pre-requisites:
Ensure that your Telnyx Mission Command Portal is configured properly
RECOMMENDED: Enable TLS to encrypt your traffic
Video Walkthrough
Setting up your Telnyx SIP portal account so you can make and receive calls:
Note: Video walkthrough for Positron IP304 phone/Telnyx configuration coming soon. Check back as we update our docs. |
1. Get your IP304's IP address and log into the Positron web portal
In this step, you'll obtain the IP address from your IP304, which you'll need to log into the web portal in the next step.

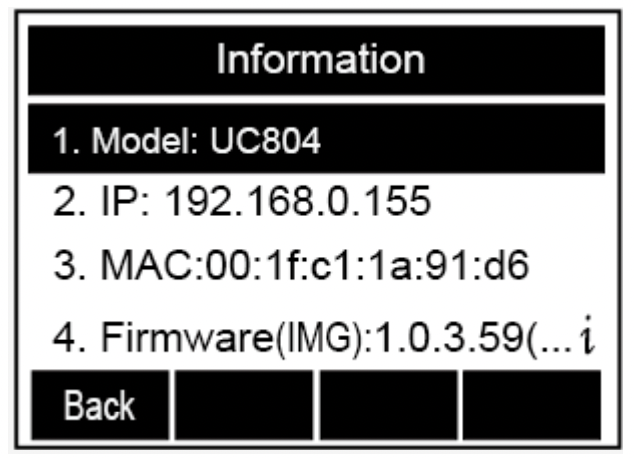

From your phone, tap the Menu button on your phone and select Status > Information to see your IP address. Take note of this.
From your computer, open a web browser and enter the IP address of your device that you obtained in Step 1 into your address bar. Prepend with http://

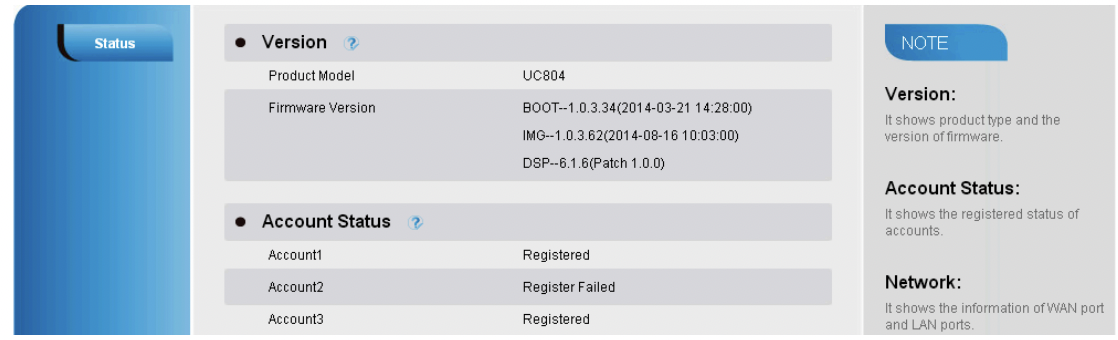

Log into your device. The first time logging in, you'll use the default credentials (Don't forget to change them after!)
Username: admin
Password: admin
2. (either) Configure your SIP profile on the Positron web portal
In this step, you will set up your device and register it with Telnyx.

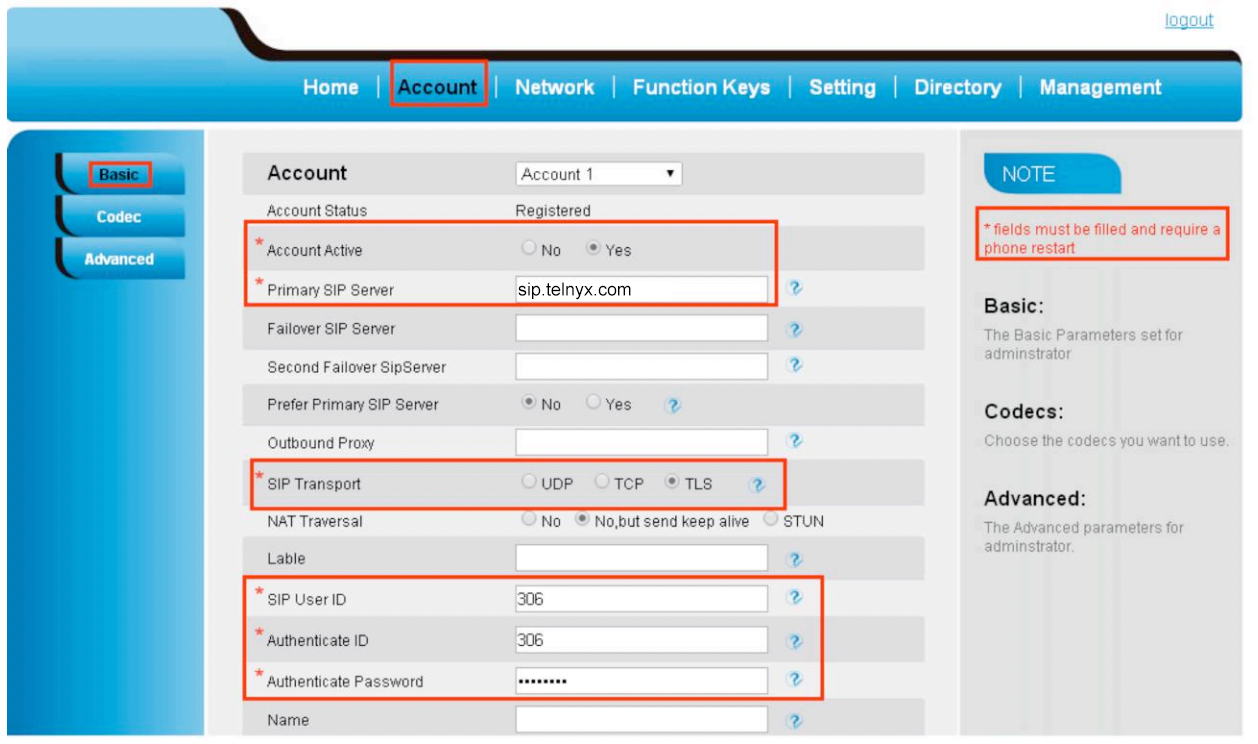

From your web portal, click on Account in the top navigation.
Click Basic in the left-hand nav and enter the following information:
Account: Choose from the dropdown (likely Account 1 unless other accounts have already been configured. In which case choose the one you're looking to set up.)
Account Active: Select Yes to enable your account upon creation.
Primary SIP Server: sip.telnyx.com
SIP Transport: UDP (default).
Note that if you are planning to encrypt calls and have set up call encryption on your Telnyx portal, you should choose TLS.
SIP User ID: Your Telnyx account ID
Authentication ID: Your Telnyx account ID
Authentication Password: Your Telnyx account password
Hit Save.
3. (or) Configure your SIP profile from your phone
In this step, you will set up your device and register it with Telnyx.

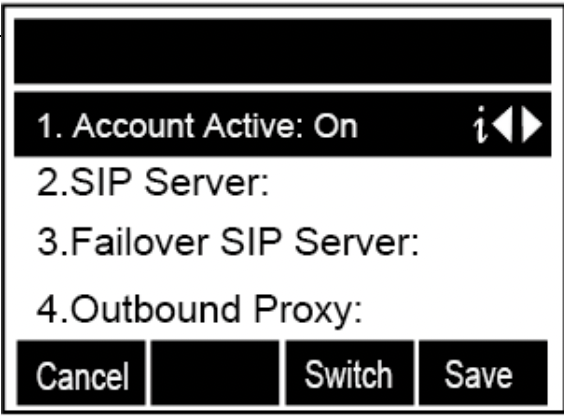

From your phone, tap the Menu button on your phone and select Settings > Advanced Settings > Accounts
Account: Select the account you want (likely Account 1 unless other accounts have already been configured. In which case choose the one you're looking to set up.)
Account Active: Select On to enable your account upon creation.
Primary SIP Server: sip.telnyx.com
Proxy SIP Server: sip.telnyx.com or leave blank
SIP User ID: Your Telnyx account ID
Authentication ID: Your Telnyx account ID
Authentication Password: Your Telnyx account password
3. (OPTIONAL) Import a TLS certificate
In this step, you'll upload your TLS certificate if you're using one.

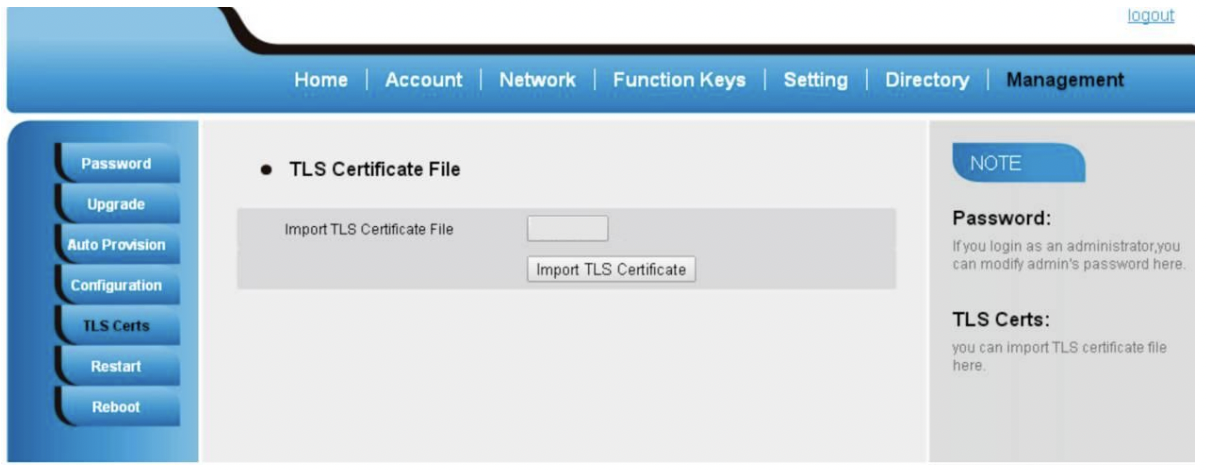

From your web portal, click on Management in the top navigation.
Click TLS Certs in the left-hand nav and upload your document here.
4. (RECOMMENDED) Change your default admin login credentials
In this step, we'll change the default login credentials for your IP304, as it's a security risk to keep factory defaults as your login credentials.

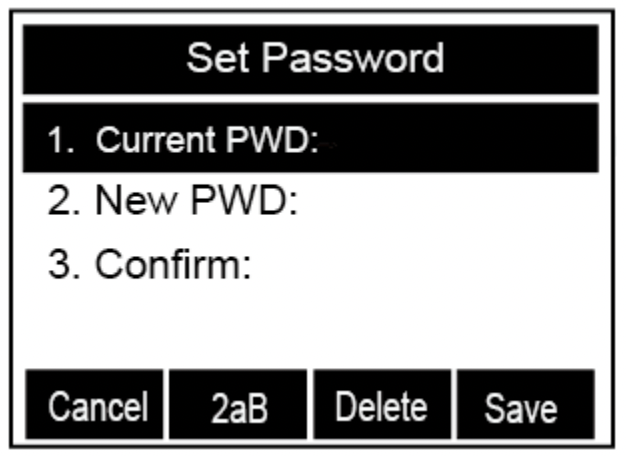

From your phone, tap the Menu button on your phone and select Settings > Advanced Settings > Password > Phone Settings > Set Password.
Enter your current password, your new password, and enter your new password again in the Confirm field to confirm it.
Click Save or the checkmark to save your changes.
That's it! You're all set up to start using your Positron IP304 phone with Telnyx.
