SIP Connection: Types

This article explains the different types of SIP Connections available in the Mission Control Portal.

Dillin avatar
Written by Dillin
Updated over a week ago

What are the Sip Connection Types?

We offer four different authentication types to register your switch to ours. This article will show you how to configure these types within the Mission Control Portal and explain the various settings that SIP Connections have. (Details on setting up MS Teams SBC can be found here: https://support.telnyx.com/en/articles/5253876-ms-teams-telnyx-pstn)

Call Control: If you are looking to setup a Call Control connection, this can be done in the Call Control section of the Portal. Click the button below to go there.

SIP Connection Registration Types Explained

Deciding on what registration type to use depends on your use case. As a rule of thumb, a credential-based connection is used if you have a dynamic public IP address. If you have a static IP address, then you can use an IP-based connection instead.

Below are guides on how to setup the following connection types:

  • Credential-based Authentication

  • IP-based Authentication

  • FDQN-based Authentication

Credentials Connection Setup

Breaking line

1. Click Create SIP Connection at the SIP Connection Tab in the Portal.

SIP Connections tab section on the Telnyx portal.

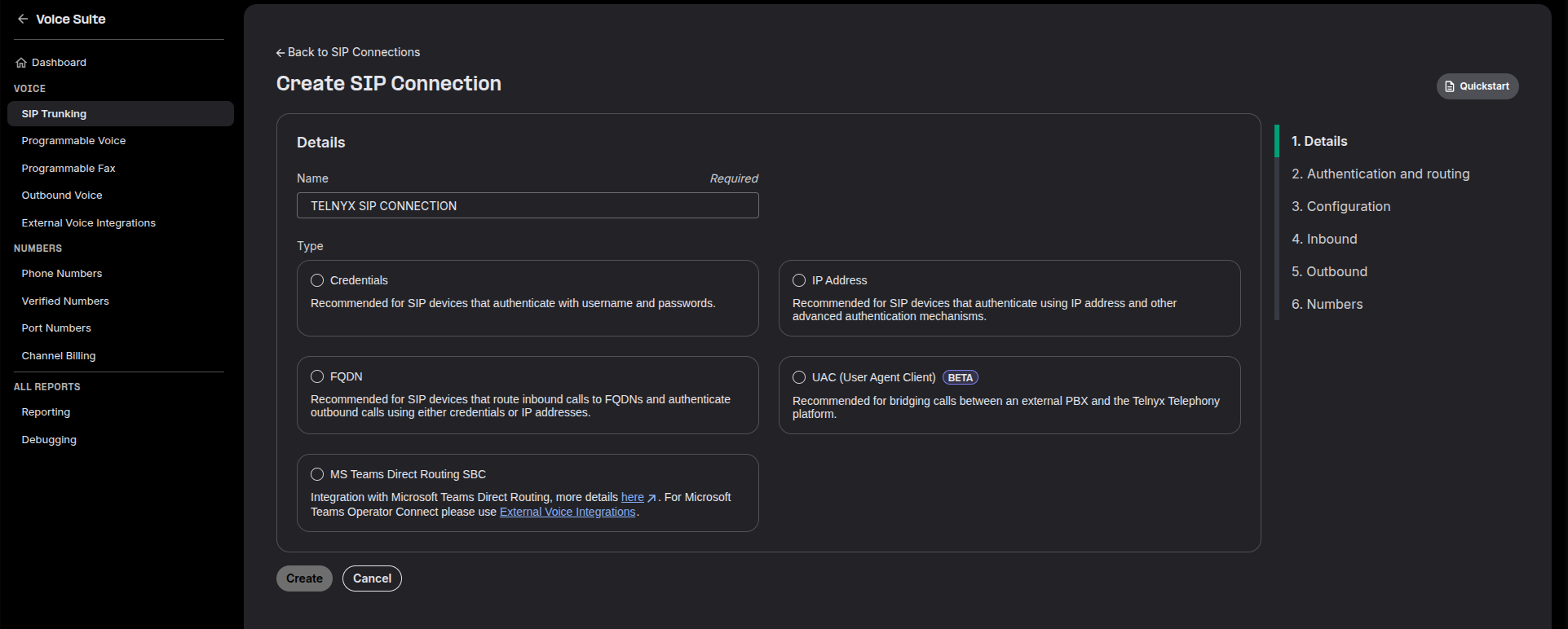

2. Enter the name you wish to have for your connection.

SIP Connection section.

3. Select Credentials as the Connection Type

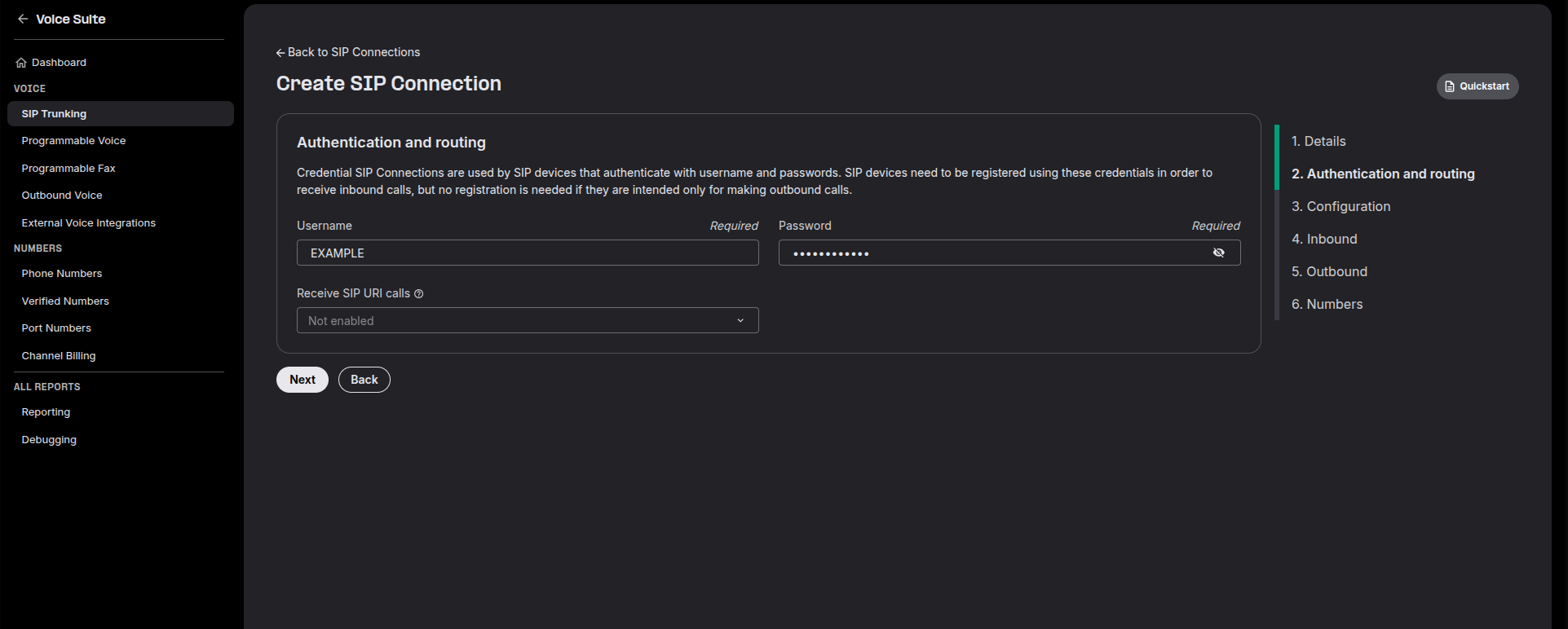

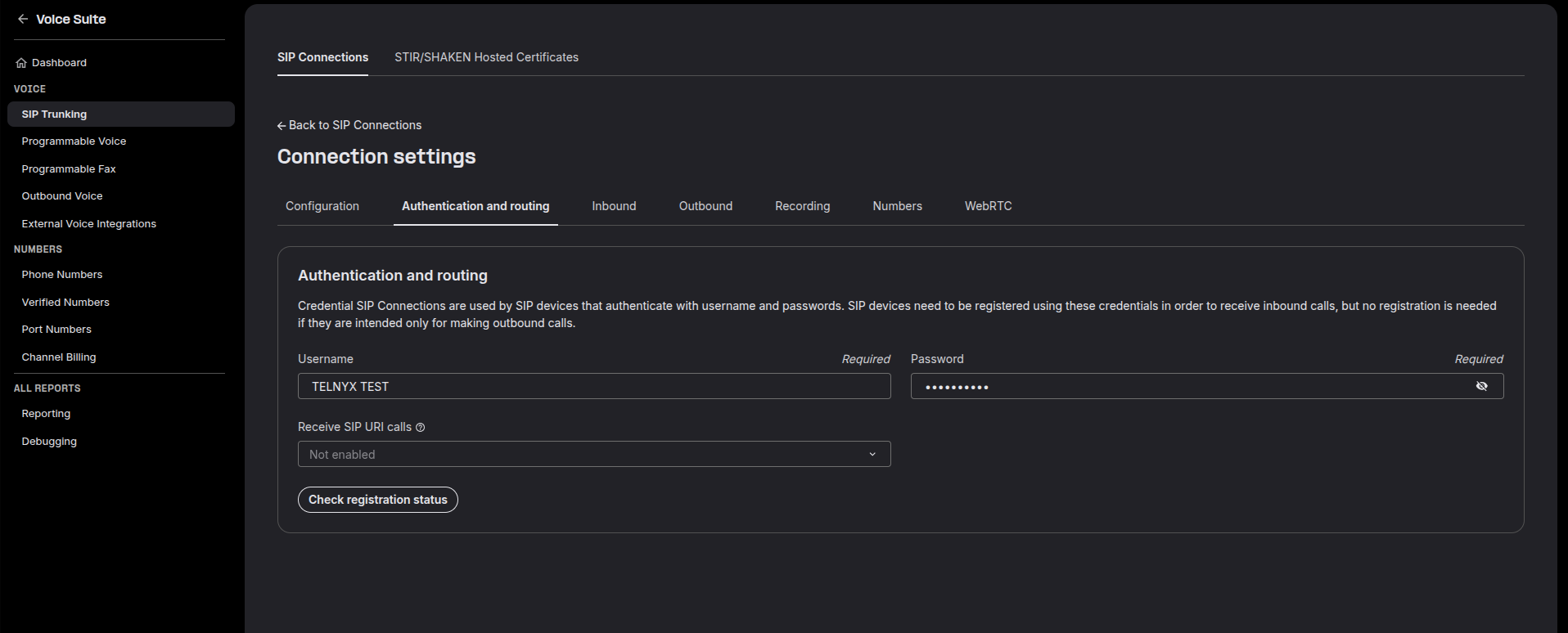

A username and password will automatically be generated but you can change the credentials via the Authentication & Routing Configuration section within the SIP connection's settings. It is highly recommended that you choose a strong password.

Username and password editing section on the Telnyx SIP connection portal.

4. Click Save or your user details will not be saved

Note: Once your Credential Connection is created, you can display the username and password by clicking the eye icon under the Auth Detail column.

SIP connection settings Save button

IP Address Connection Setup

Breaking Line

1. Click Create SIP Connection at the SIP Connection Tab in the Portal.

SIP Connections tab section on the Telnyx portal.

2. Enter the name you wish to have for your connection.

SIP Connection settings section.

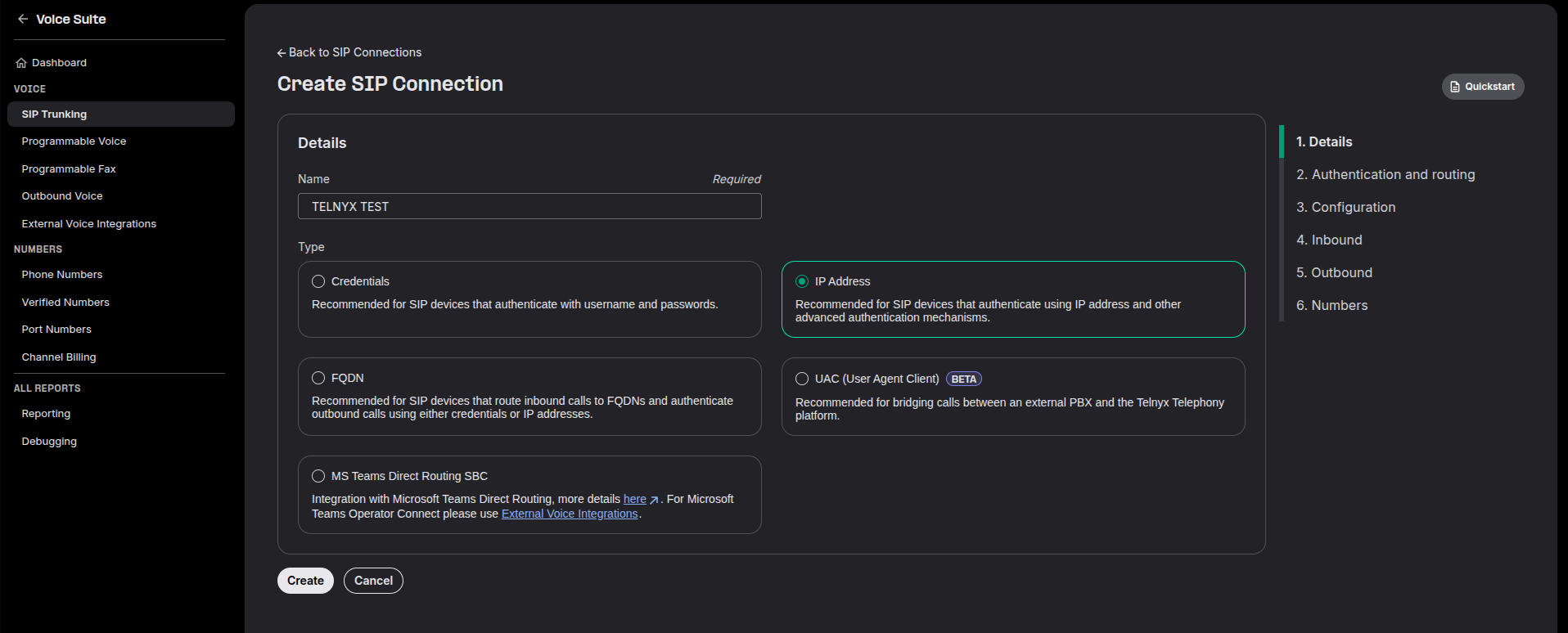

3. Select IP Address as the Connection Type

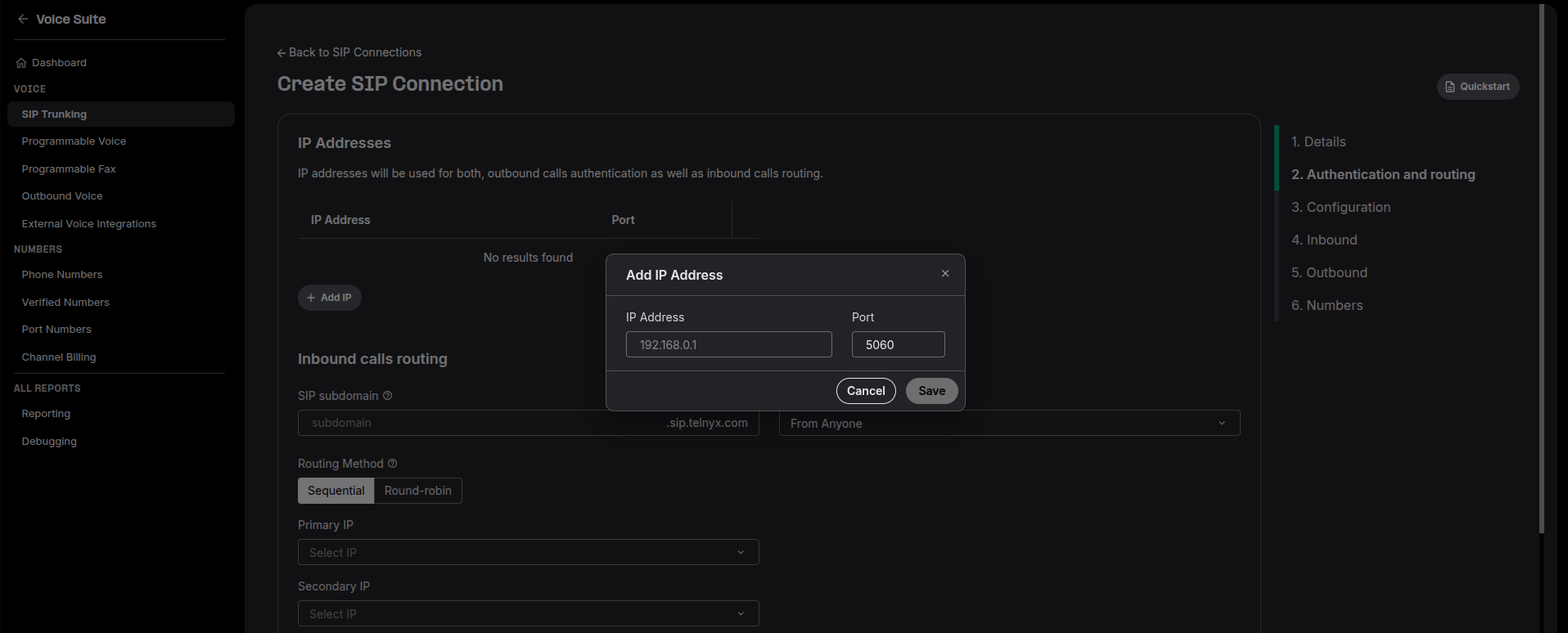

Enter an IP address and port via the IP addresses section within the SIP connections settings and click Add IP address.

IP selection on the IP addresses section.

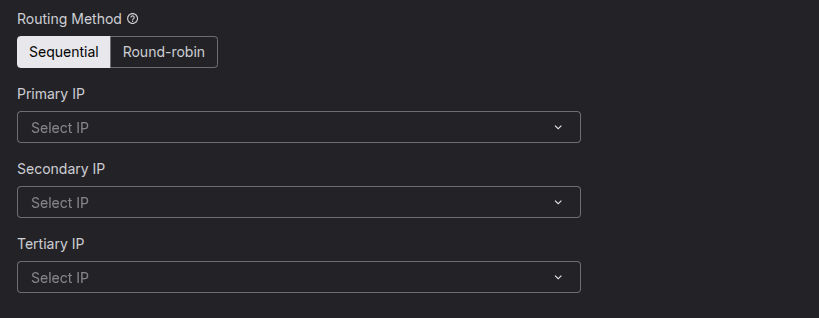

You can add multiple IP addresses and select the order of preference. There are two routing methods to choose from; Sequential and Round Robin.

IP address settings on the Telnyx SIP connection portal.

4. Click Save

SIP connection settings Save button

Note: If you do not have a static IP address, it will change and you will be unable to receive or make calls.

FQDN Connection Setup

Breaking Line

Click Create SIP Connection at the SIP Connection Tab in the Portal.

SIP Connections tab section on the Telnyx portal.

2. Enter the name you wish to have for your connection.

SIP connection settings section.

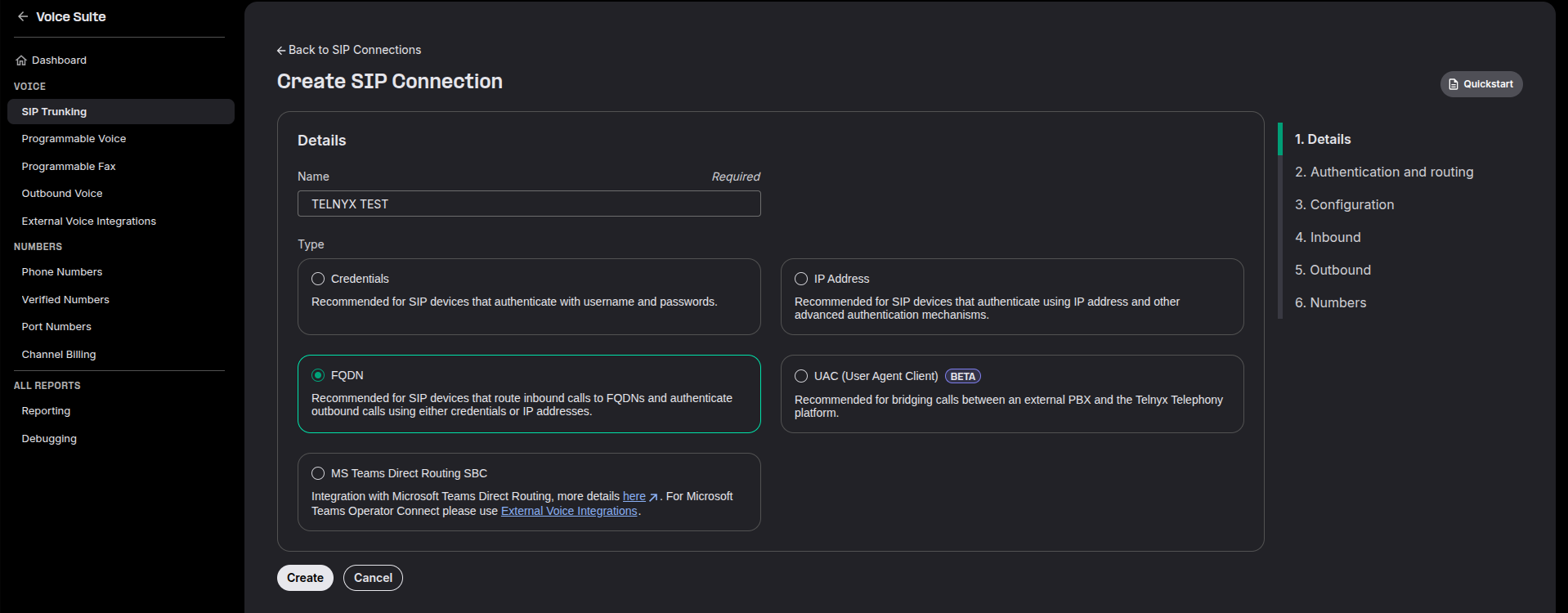

3. Select FQDN as the Connection Type

This connection type is slightly different as it has an inbound setting and an outbound setting.

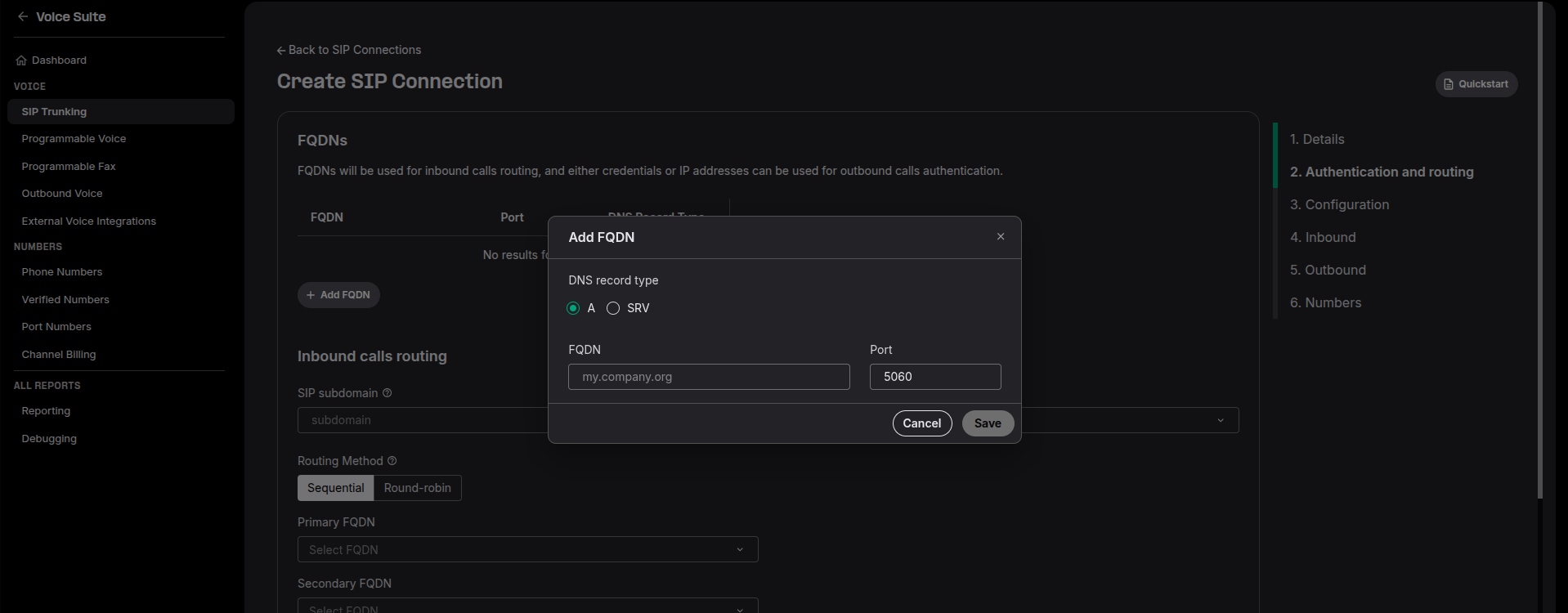

In the inbound settings, choose your FQDN type (for most users this will be A) and enter your Fully Qualified Domain Name in the input box. Click Save FQDN to add the address.

FQDN Connection selection section.

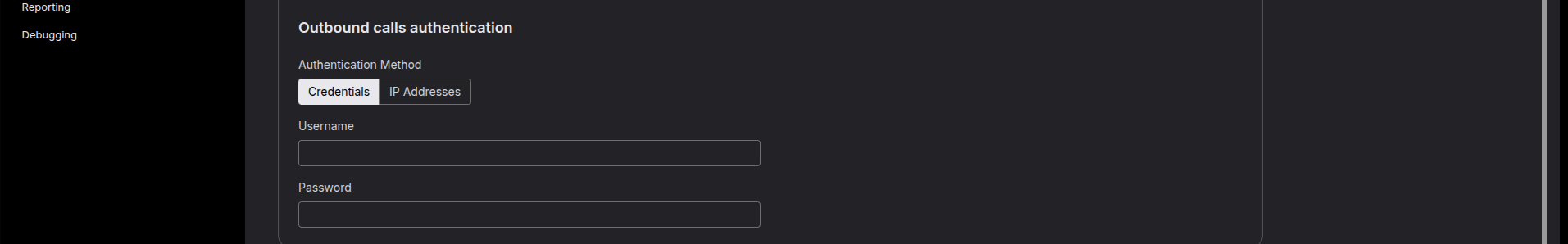

In the outbound settings, choose either Credentials or IP Address, and configure using the guides above.

4. Click Save & Finish Editing or your FQDN will not be saved

Save and Finish Editing button.

Note: You can assign multiple FQDN addresses on the Inbound section and multiple IP addresses on the Outbound section to a single FQDN registered connection. You can change the routing priority and routing method in the connection settings.

Where can I find the connection id?

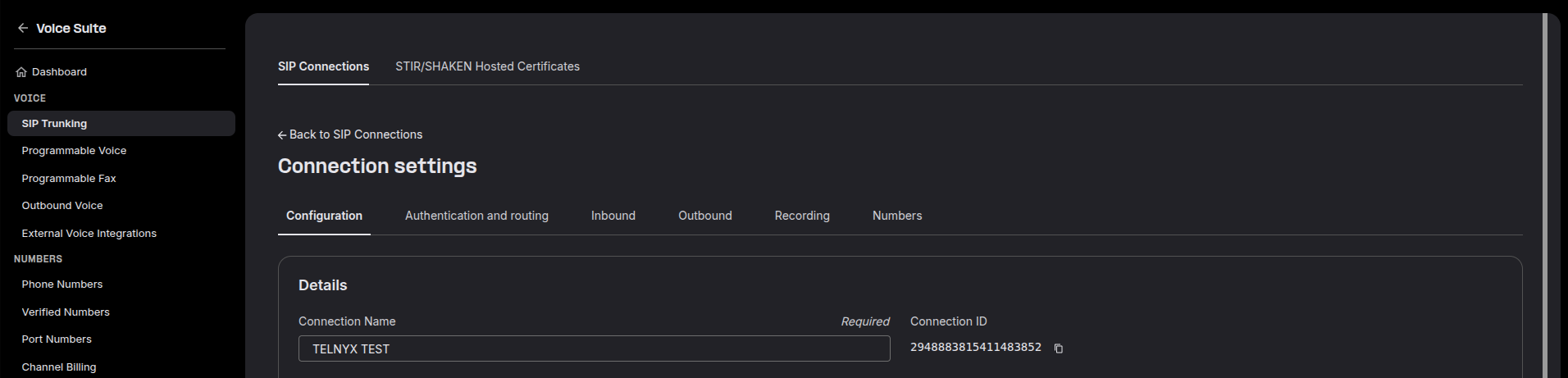

Once a connection is created, you can find the unique connection id just below the settings sub tab of the SIP Connection as seen below:

AUS SIP Proxy.

Take a look at our SIP Connections API if you want to programmatically update the SIP Connection settings.

How do I deactivate or disable my SIP Connection?

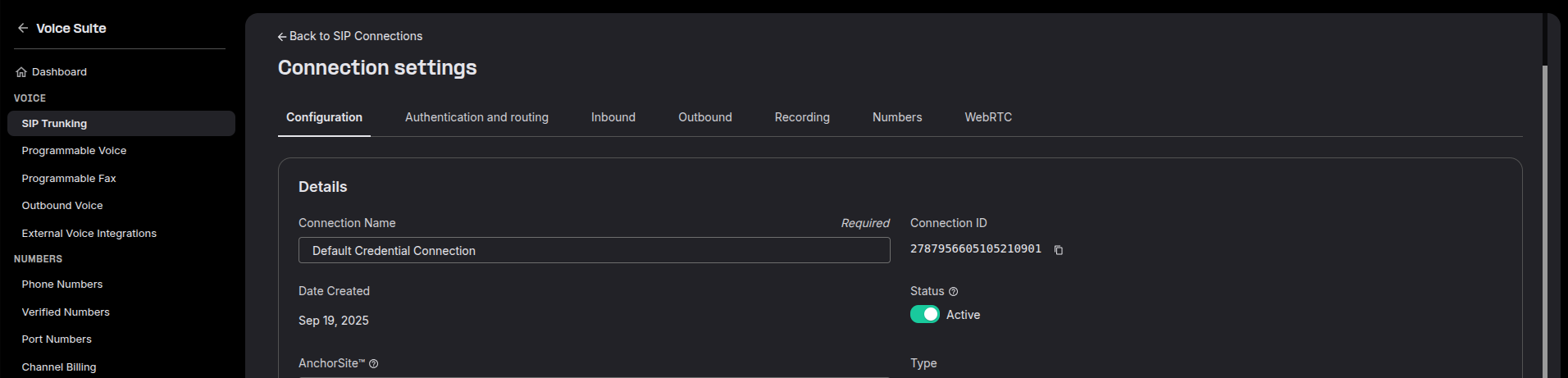

To deactivate or disable your SIP Connection visit the SIP Connections page and click the toggle under the "status" column. This will deactivate the SIP Connection which will mean inbound calls and outbound calls will not be processed. See this image below for reference.

Connections section.

Breaking Line
