Set up a hosted STIR/SHAKEN certificate

Use your own certificate to sign outbound calls through Telnyx’s hosted signing service.

Before you begin

You’ll need:

• A certificate from an authorized STI-CA, hosted at a public HTTPS URL.
• An unencrypted PEM private key using EC-P256 or RSA-2048.
• An outbound voice profile.
• A US phone number for testing.

1. Add your certificate in Mission Control Portal

1. Sign in to the Mission Control Portal.

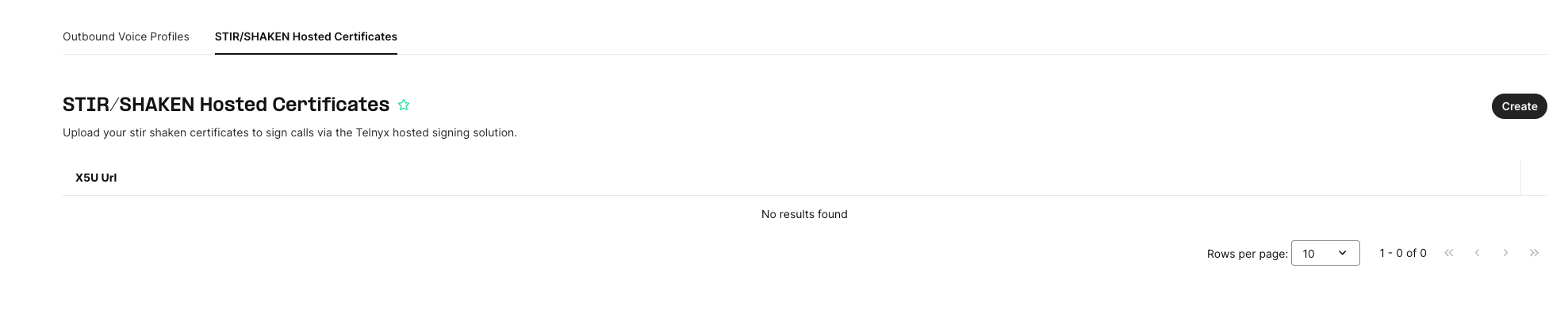

2. Open the STIR/SHAKEN Hosted Certificates tab beside Outbound Voice Profiles.
3. Click Create.

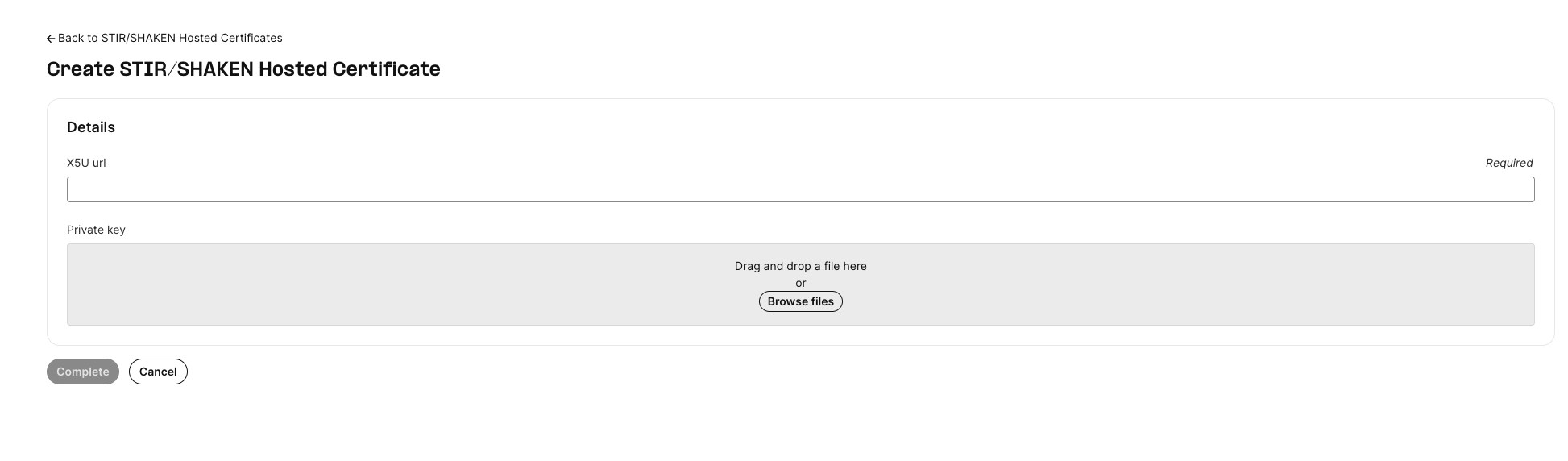

4. In X5U url, enter the public HTTPS URL where your certificate is hosted.
5. Under Private key, drag and drop your private key file or click Browse files to select it.
6. Click Complete to submit.

API alternative

Send POST /v2/stir_shaken_certs:

{
  "x5u_url": "https://example.com/certificate.pem",
  "private_key": "<YOUR_PEM_PRIVATE_KEY>"
}

For API requests, supply the key without \n characters.

2. Associate the certificate with an outbound voice profile

Send PATCH /v2/outbound_voice_profiles/{id} using your profile ID:

{
  "stir_shaken_cert_id": "<YOUR_CERTIFICATE_ID>"
}

3. Verify signing

1. Create an IP connection with Receive SHAKEN/STIR Identity SIP header enabled.
2. Assign a US number to it.
3. Call that number using the configured outbound voice profile.
4. Check that the inbound SIP INVITE contains an Identity header referencing your certificate URL.

Billing

Each certificate costs $100 per month, with a seven-day grace period after upload. Charges apply per unique x5u_url. Deletion cancels recurring charges.

Reference: Telnyx hosted certificate documentation.
