Microsoft Call2Teams™ is an add-on for Office 365 that connects Microsoft Teams to any PBX or SIP Trunk, allowing you to make and receive calls on any device using the Microsoft Teams App.

Additional resources:


Instructions for setting up and configuring Call2Teams to work with Telnyx

In this activity you will:

  1. Set up the Office 365 Tenant

  2. Connect to Telnyx and create a SIP trunk

  3. Assign a phone number to a team member

Pre-requisites

  • Your Telnyx Portal must be correctly set up and configured for use

  • Have your SIP Credentials (The username/password for your main SIP account or SIP sub-account)

  • Have DID(s) available to assign

  • A PC running a Windows OS

  • Create a temporary spare user license on Microsoft 365

  • Global admin access to your Microsoft 365 tenant

  • Create a Call2Teams subscription

Video Walkthrough

Setting up your Telnyx SIP portal account so you can make and receive calls:

1. Set up the Office 365 tenant

In this section you will log into the Call2Teams portal and set up your

  1. Once you've created your subscription to Call2Teams, you'll receive an email inviting you to the portal. When you click Accept Invitation, you'll need to use your Office 365 account to log in. Make sure this account is associated with the organization you're configuring Call2Teams for and that you have global-level; access.

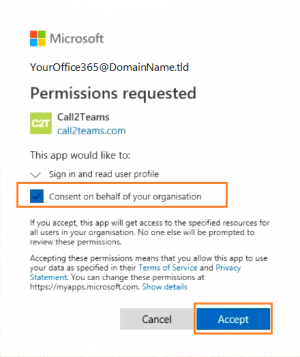

  2. Give Call2Teams permission to connect to your 365 account.

    1. You MUST check the Connect on behalf of your organization checkbox.

  3. Click Accept.

2. Connect to Telnyx and Create a SIP trunk

In this activity, you will set Telnyx as your SIP provider and create your first trunk that will be connected by Call2Teams to Microsoft Teams.

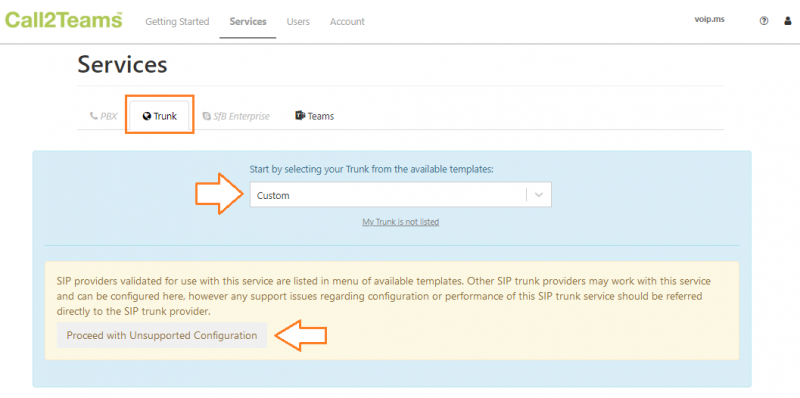

  1. From the Call2Teams admin portal, click on the Service tab in the top navigation.

  2. From here, find the Trunk tab. Click on this, then click Add New Trunk.

  3. Here you will see a drop-down menu where you can select from a list of verified providers with pre-configured profiles that will set your trunk up for you.

    1. As of the time of writing, Telnyx is not yet on this list, so you'll need to select Custom from this list. You'll get a message telling you that any Telnyx-specific support can't be handled by Microsoft at this time. Click the Proceed with Unsupported Configuration button.

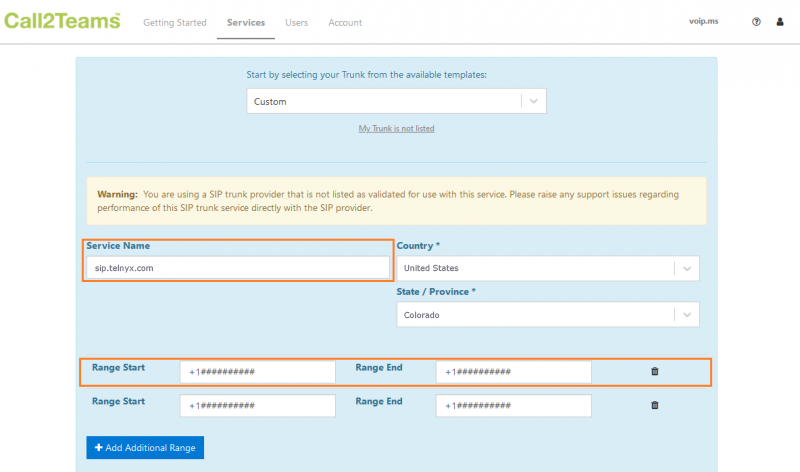

  4. You'll now be able to enter your Telnyx account information. Provide the following:

    • Service Name: Telnyx Trunk 1

    • Country: Your Country

    • State/Province: Your State/Province

    • Range Start/Range End: You'll use your Telnyx DIDs. Ensure that you add + plus your country code before entering your DID.

      • If you have more than one DID that you would like to add and they are not sequential, add each of these DIDs on both the START Range and the Range END fields.

      • You will need to add each DID separately by adding a new range by clicking on + Add Additional Range.

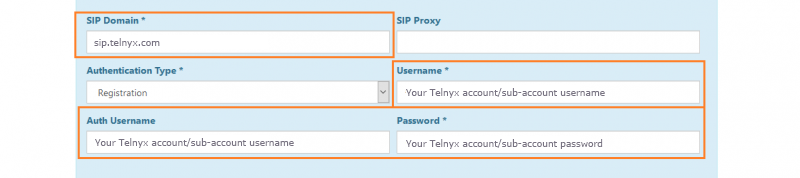

    • SIP Domain: sip.telnyx.com

    • Authenticate Type: Registration

    • Username: Your Telnyx account/sub-account username

    • Auth Username: Your Telnyx account/sub-account username

    • Password: Your Telnyx account/sub-account password

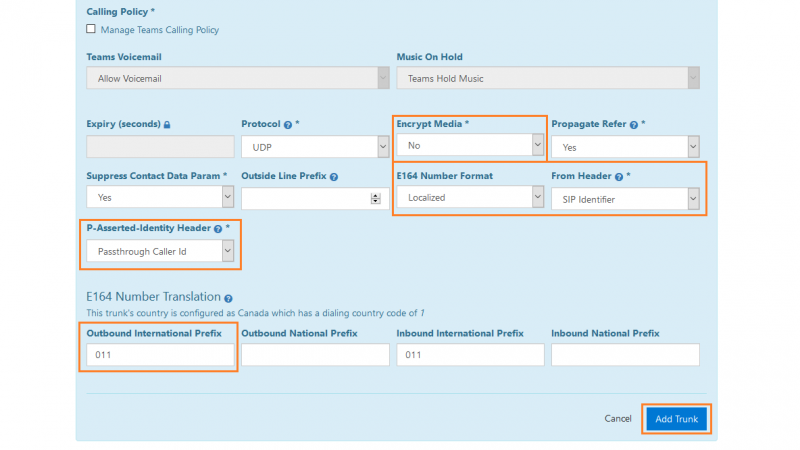

    • Expiry (seconds): If you want, click on the padlock, and enter 300. You can also leave this blank.

    • Protocol: UDP or TCP.

    • Encrypt Media: No

    • Propagate Refer: Yes

      Note: Select Yes to propagate received SIP REFER messages from Microsoft upstream to this service.

      • If set to No then transfers are bridged out as new calls. On the 2nd Gen OneClick Teams connector you should select Yes if you have users in a Call Center, but otherwise select No as this will allow consultative transfers to work better.

    • Propagate Refer: No

    • Outside Line Prefix: Leave this option blank

    • E164 Number Format: Localized

    • From Header: SIP Identifier

    • P-Asserted-Identity Header: This will be the outbound caller ID Name. You can choose:

      • Passthrough Caller Id: This will be the caller ID given by the far end (e.g. Teams (The user extension name)),

      • Trunk User Number: To display the phone number assigned to the user in the portal

    • E164 Number Translation (The incoming number needs to be converted to E164 format)

      • Outbound International Prefix: 011

      • Outbound National Prefix: Leave blank

      • Inbound International Prefix: Indicate

      • Inbound National Prefix: Leave blank

  5. Click the Add Trunk button.

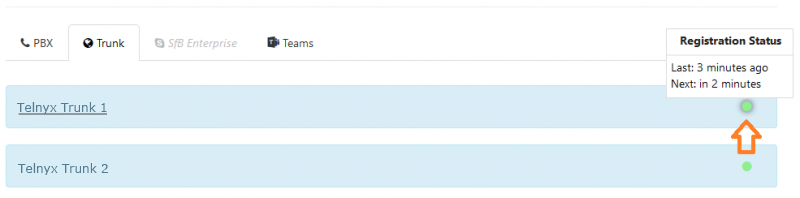

  6. You'll now see your new trunk in your list. Click on the Trunk tab to see your list at any time. You can also monitor the health of your Trunk and ensure it's still up and running from this list.

3. Associate a number with a team member

In this section, you'll add users to Call2Teams and associate numbers with them. These numbers will be the DIDs you entered in section 2.

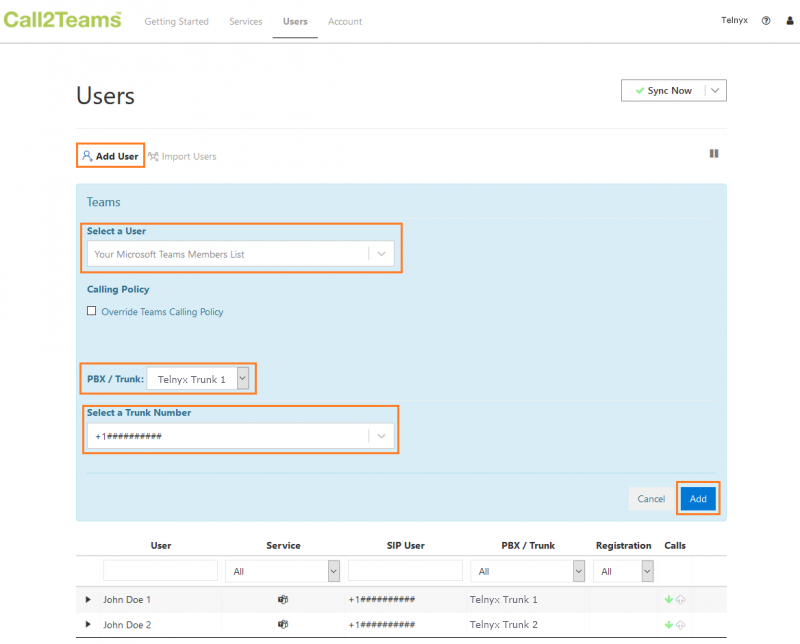

  1. Click on the Users tab in the top navigation.

  2. From this tab, click Add New User and provide the following information:

    1. Select a User: Select the user intended for the number.

    2. PBX/Trunk: Select a trunk you've created

    3. Select a Trunk Number: Select the DID intended for this user.

  3. Click the Add button, followed by the Sync Now button in the upper right.

That's it! You've finished configuring Call2Teams, and can now start testing calls!
