BYOC: Telnyx & Genesys

This guide provides instructions and technical details for the configuration of SIP trunk connectivity between Genesys Cloud and Telnyx.

Karl Hulse avatar
Written by Karl Hulse
Updated over a week ago

Genesys and Telnyx BYOC

Before you get started you'll have to have the following set up:

  1. Have created an account with Telnyx

  2. Completed L2 verification

  3. Purchased a number to be used for voice calls.

Creating a SIP connection

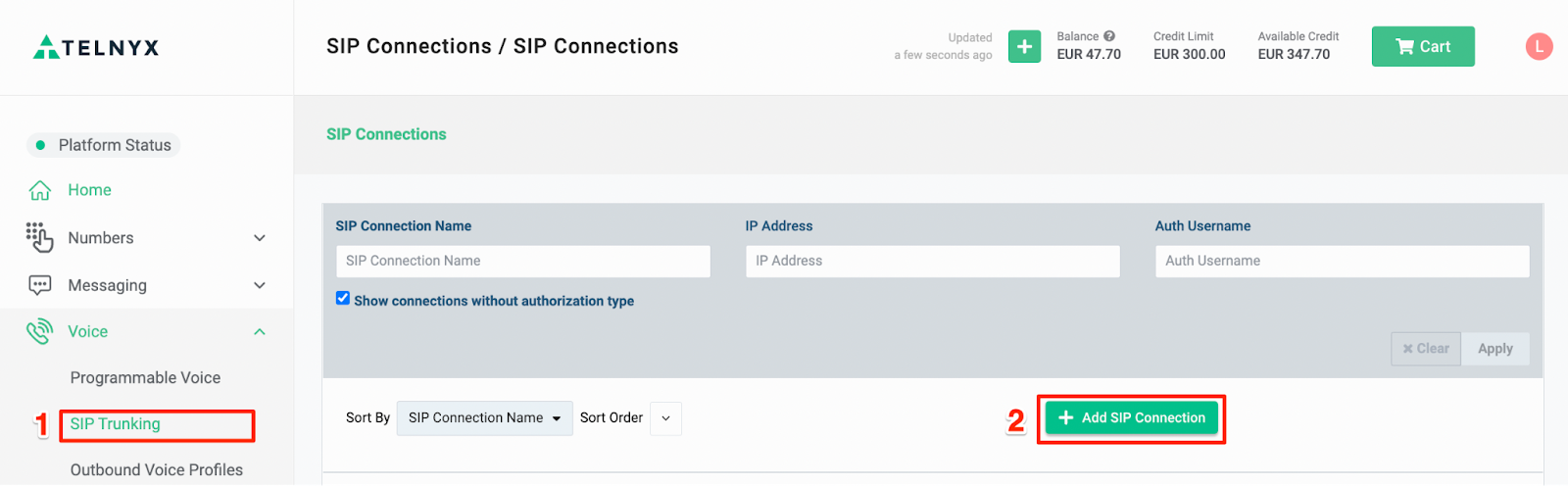

In the Telnyx Mission Control Portal navigate to the "Voice” tab on the left side menu and select "SIP Trunking". Click on the “Add SIP Connection” button.

Genesys Cloud & Telnyx SIP Set up

Image 1 - Creating a SIP Trunk in Mission Control

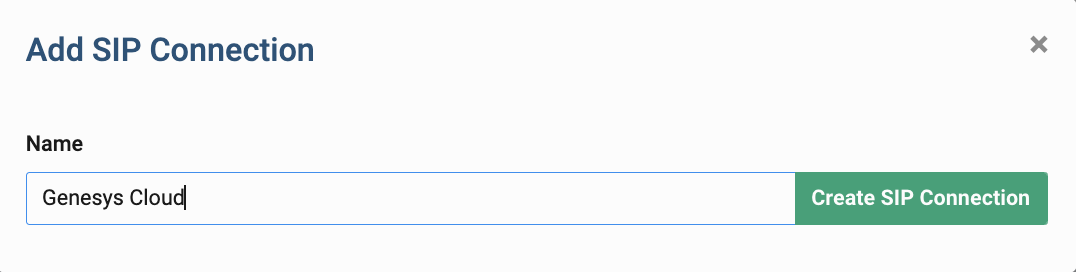

Name your SIP connection to make it easy to find.

Genesys Cloud & Telnyx Connection Type

Naming your connection

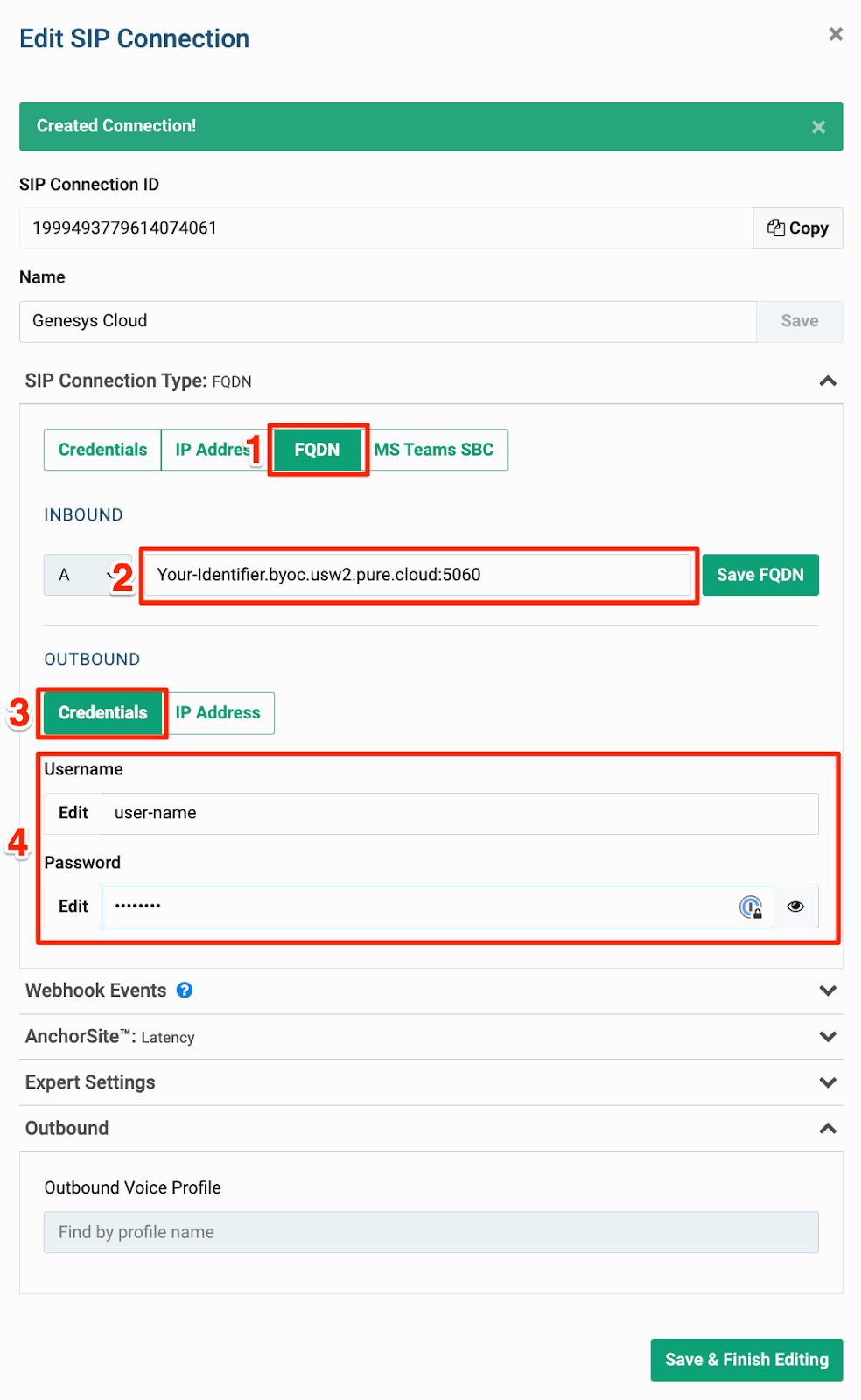

Choose “FQDN” as the SIP connection type and provide SIP URI to your Genesys Cloud organization. The domain should match the region of your Genesys Cloud deployment. Click the “have FQDN” button to update the FQDN setting.

In the “Outbound” section of the SIP connection settings, choose “Credentials” and provider user name and a password to be used for a digest authentication. Click “Save & Finish Editing” button to save your SIP Connection.

Genesys Cloud & Telnyx FQDN Connections

Image 2 - Choosing a FQDN Connection type

Creating an Outbound Voice Profile

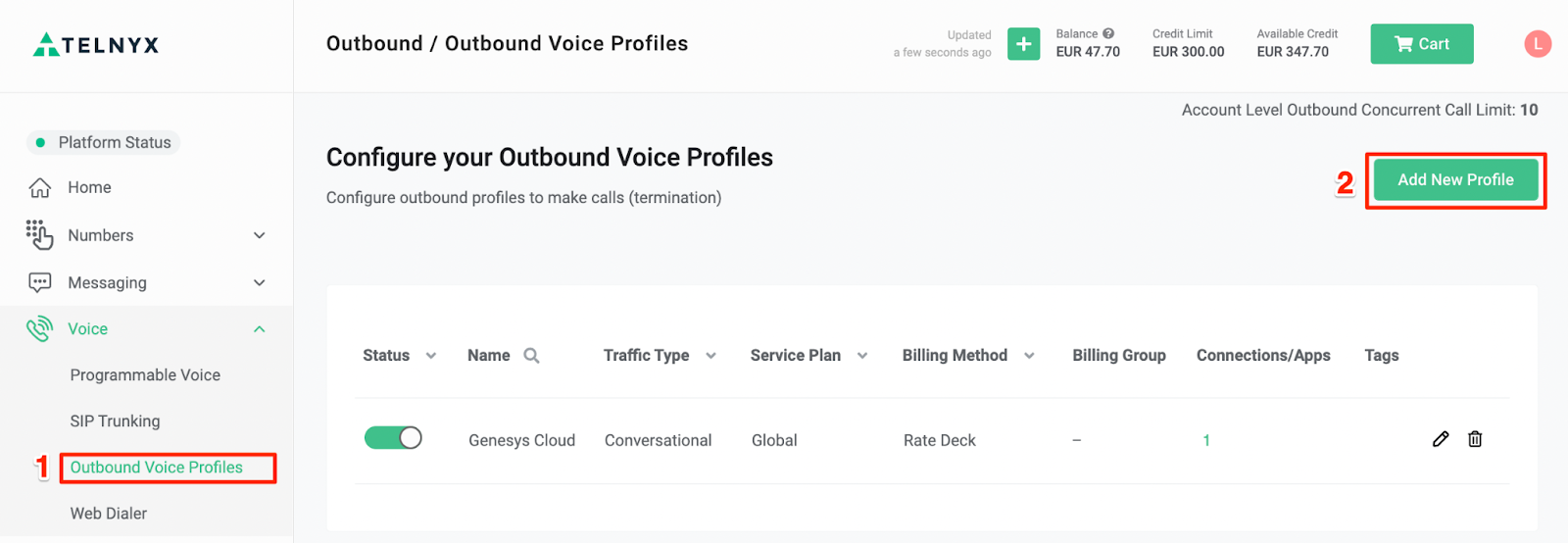

Navigate to the “Outbound Voice Profiles” tab in the "Voice" section. Click the “Add New Profile” button.

Genesys Cloud & Telnyx Outbound Voice Profile Setup

Image 3 - Setting up your Outbound Voice Profile

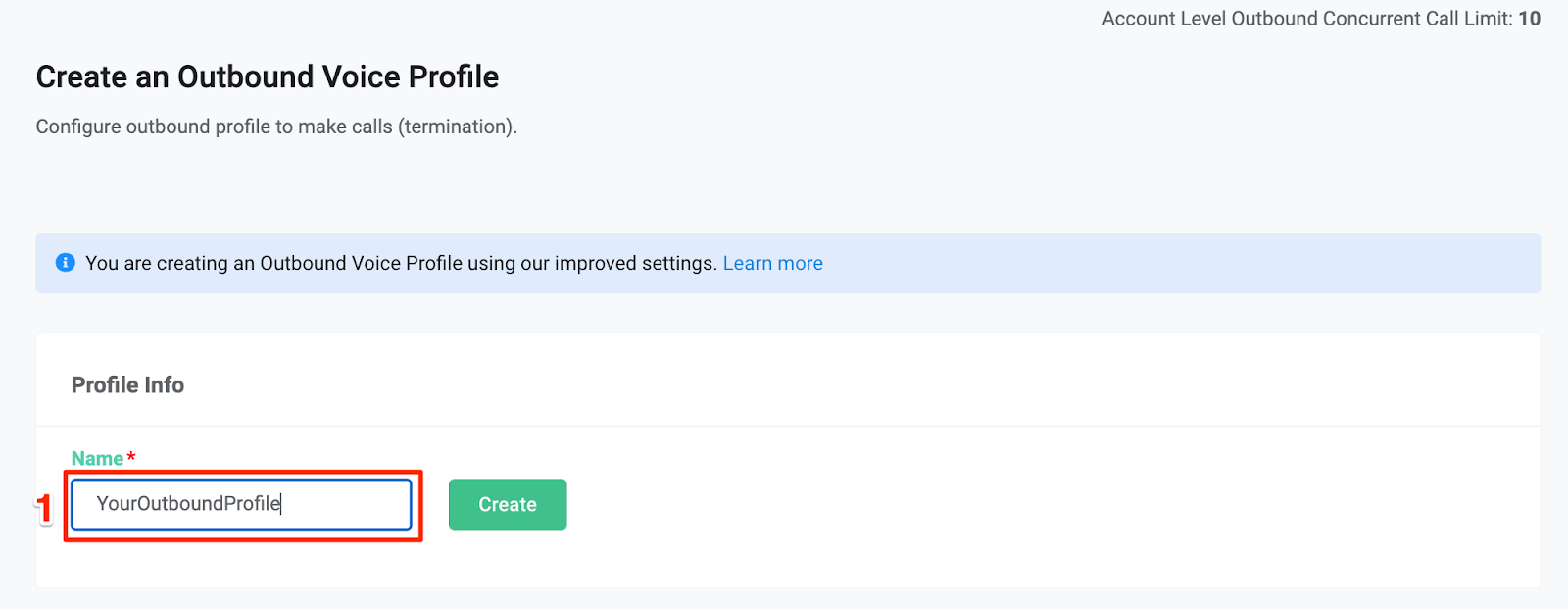

Provide a name for your new Outbound Voice Profile and click "Create".

Genesys Cloud & Telnyx Naming your OVP

Image 4 - Naming your Outbound Voice Profile

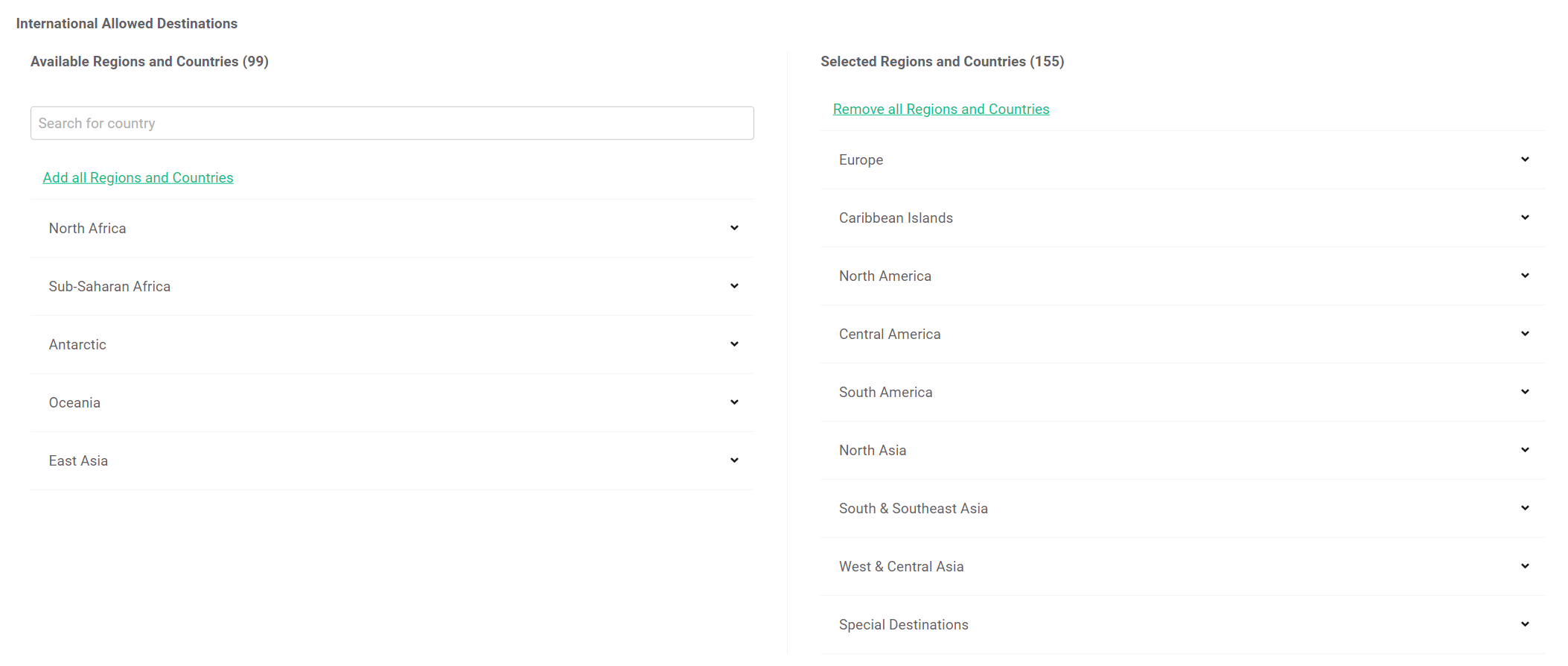

You can select individual countries or regions to be allowed for the voice calls. Once you have chosen where to allow calls to/ from click the “Save” button to confirm your configuration.

Outbound voice profile section.

Image 5 - Outbound Voice Profile Settings

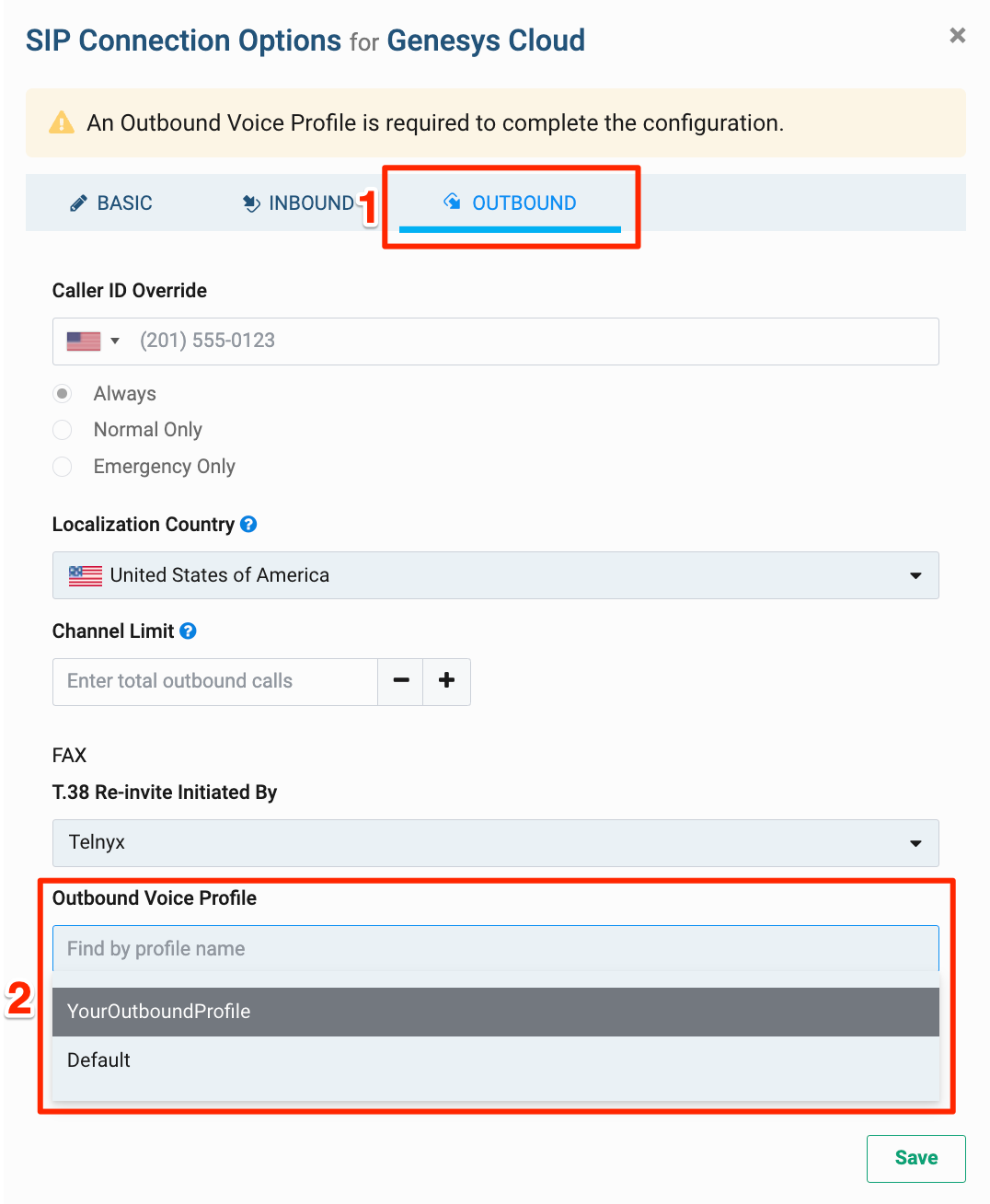

Return to your SIP Connection and edit the configuration. Select “Outbound” tab and select your newly created Outbound Voice Profile from a dropdown list.

Genesys Cloud & Telnyx SIP Connection Options

Image 6 - Add your Outbound Voice Profile to your SIP Connection

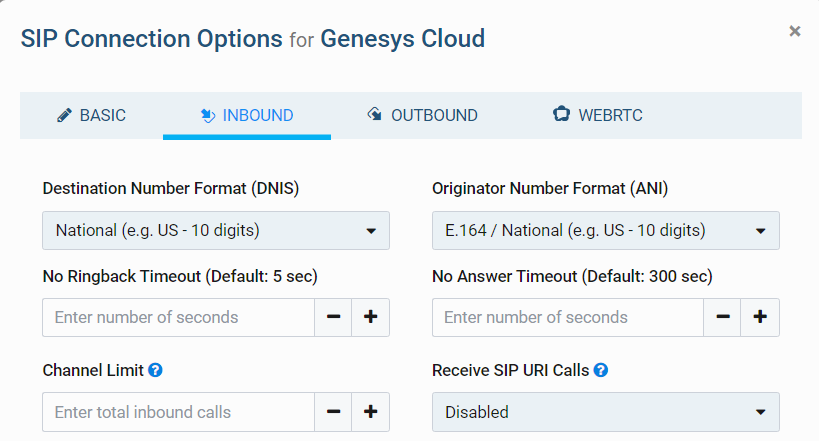

Next, switch to the “Inbound” tab of your SIP connection. Adjust DNIS and ANI numbers format to your Genesys Cloud configuration and save the updated configuration.

SIP connection settings for Genesys Cloud.

Image 7 - Inbound SIP Connection Settings

Number Configuration

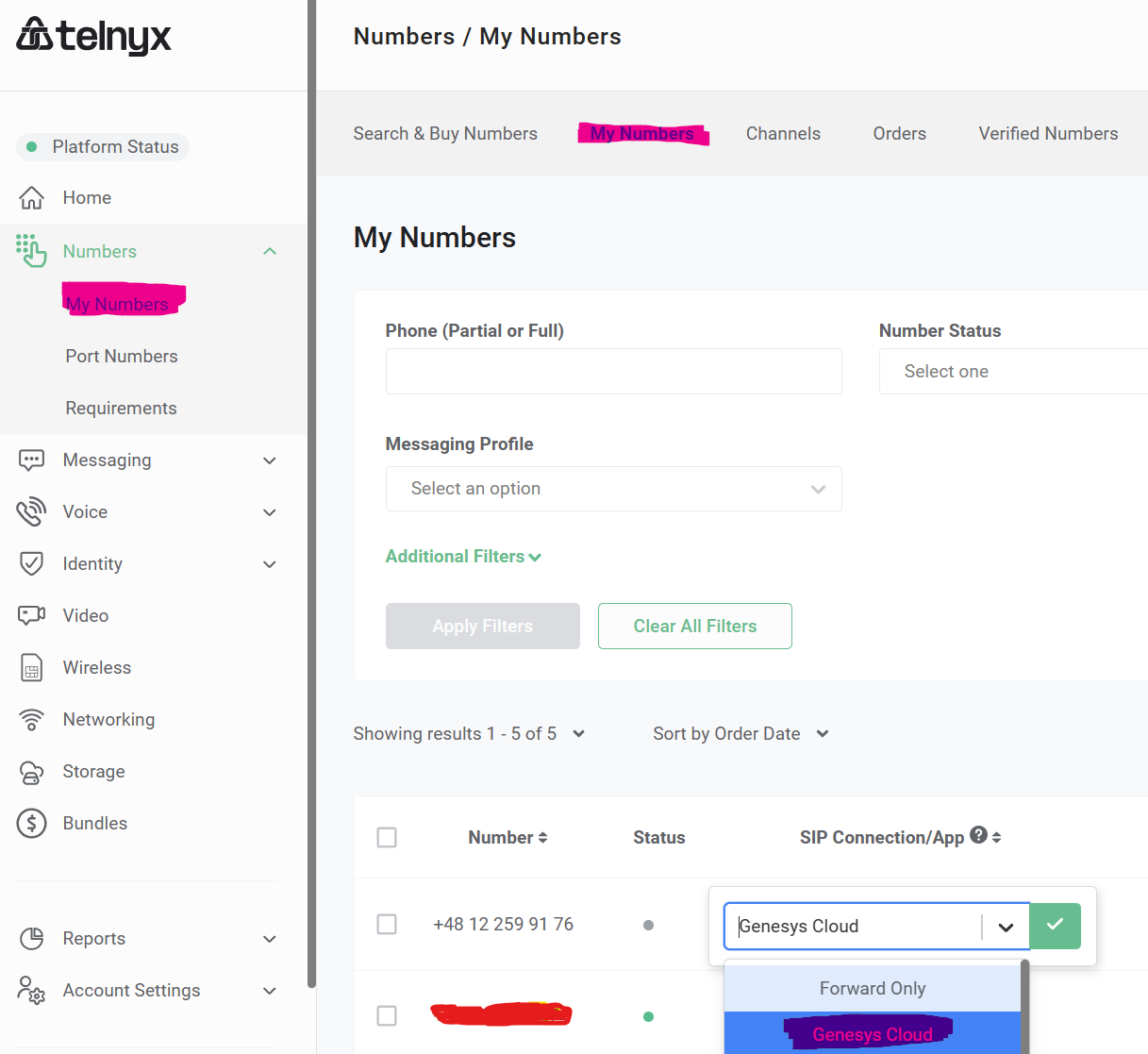

On the left-side menu, select the “Numbers” section and navigate to “My Numbers” tab. For your number purchased select a configured SIP Connection from a dropdown list.

Mission control portal for Number Configuration.

Image 8 - Navigating To My Numbers

Note that you can assign the same SIP connection to multiple numbers.

Configuration in Genesys Cloud

Follow the steps below to create a SIP connection to Genesys Cloud organization.

Before you get started you need to ensure that:

  1. The BYOC option is enabled in your Genesys Cloud organization

  2. You have admin rights to setup Trunks

  3. You have a number purchased and added to "DID Numbers" and routed correctly (for example to the Architect flow)

For assistance, refer to Genesys Resource Center on for all details about Genesys Cloud configuration.

Create a SIP Trunk

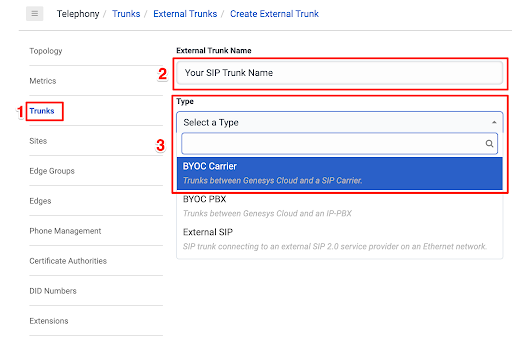

Go to the Admin options and select "Trunks". Provide a name for your SIP trunk and choose “BYOC Carrier” a SIP trunk type.

Genesys Cloud & Telnyx Creating a SIP Trunk

Image 9 - Creating a SIP Trunk in Genesys Cloud

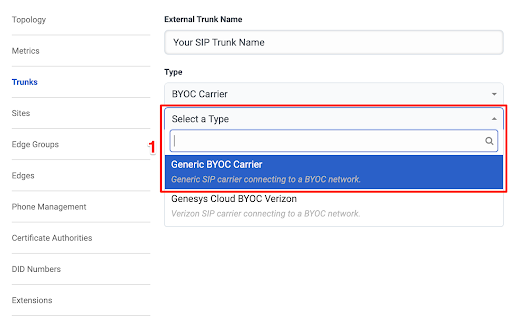

Select "Generic BYOC Carrier" as a subtype.

Genesys Cloud & Telnyx Selecting BYOC

Image 10 - Selecting Generic BYOC Carrier

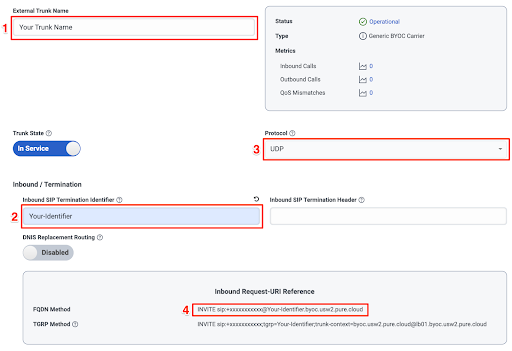

Provide a name for your SIP Trunk and your Inbound SIP Termination Identifier. This name should match the one configured in the Telnyx SIP Connection for FQDN option.

Genesys Cloud & Telnyx Name your connection

Image 11 - Naming your connection

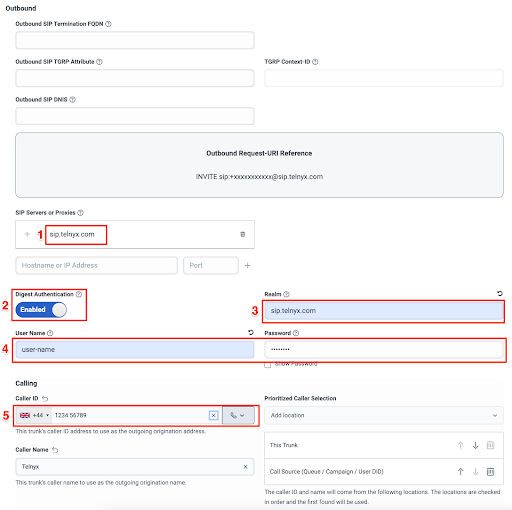

Provide Telnyx SIP interface URL in the “SIP Servers and Proxies” based on your chosen region like, etc.

Enable “Digest Authentication” and provide in “Realm” field the same URL as used for SIP proxy.

Provide the “User Name” and “Password” which was configured in Telnyx SIP Connection . Setup “Caller ID” with a number purchased in Telnyx platform.

Genesys Cloud & Telnyx Settings

Image 12 - Manage your connection settings

In the "SIP Access Control" Section, provide the IP addresses of your chosen Telnyx SIP endpoints (addresses are provided on

SIP Access Control

Image 13 - Add SIP Addresses

Under the 'External Trunk Configuration' section expand the Protocol menu.

Scroll down to the 'Outbound' configuration and add a custom SIP header “X-Telnyx-Username” with the same value as set for a Digest Authentication.

Genesys - Adding External Trunk Connections

Image 14 - External Trunk Configuration

Outbound Settings

Image 15 - Outbound Trunk Settings


Debugging tools are available in the Telnyx Mission Control Portal where you can troubleshoot any issues with your SIP trunk communication checking SIP call flows, QoS stats and communication to a defined webhooks.

To find and use the debugging tools:

  1. Navigate to the “Debugging” menu under “Reporting” in the sidebar

  2. Select “SIP Call Flow Tool” in the top bar

  3. Specify your search criteria and press “Search CDRs” button

  4. From the list of listed calls select a one with “Call Data Debugging” button.

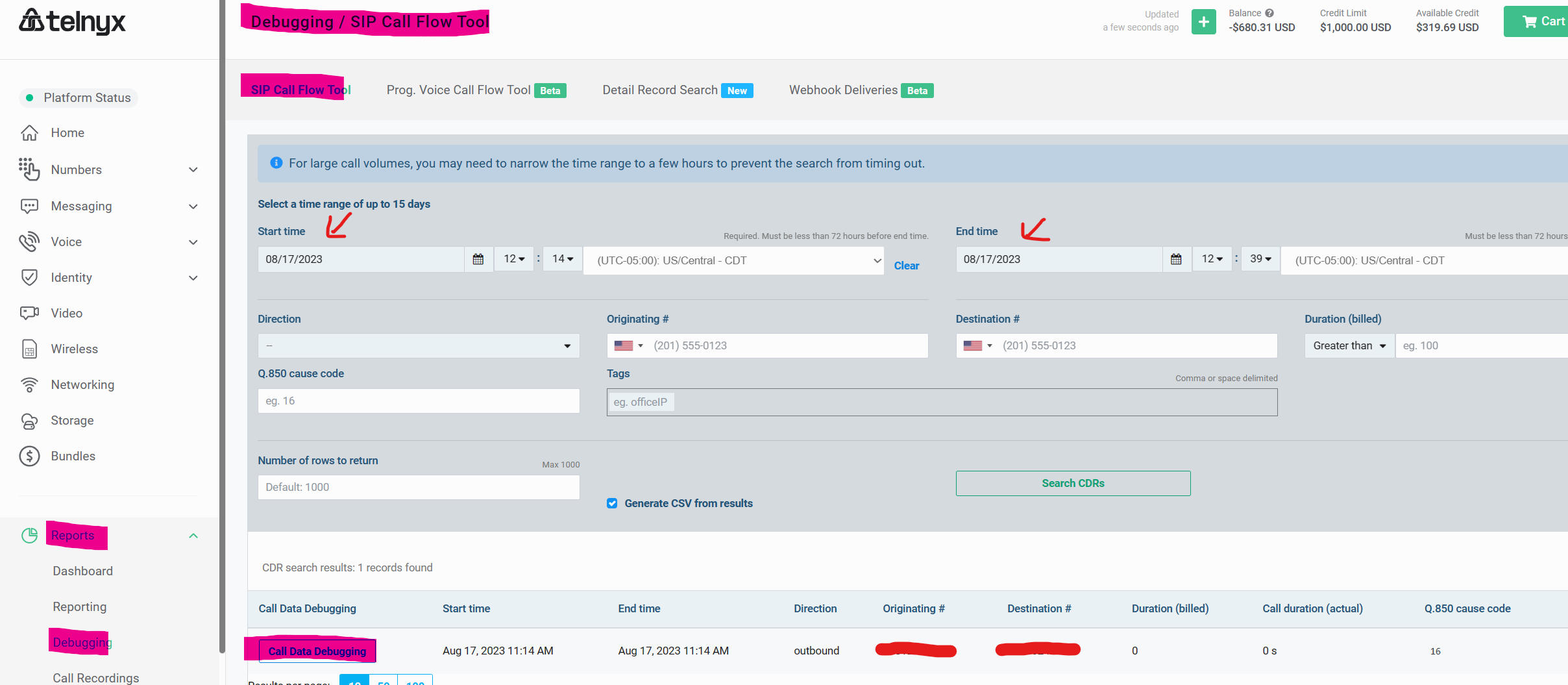

Mission Control Debugging Tools Overview section.

Image 16 - Mission Control Debugging Tools Overview

This enables you to review a SIP Call Flow with the detailed data for each SIP Request:

Image 17 - Call Flow Debugging

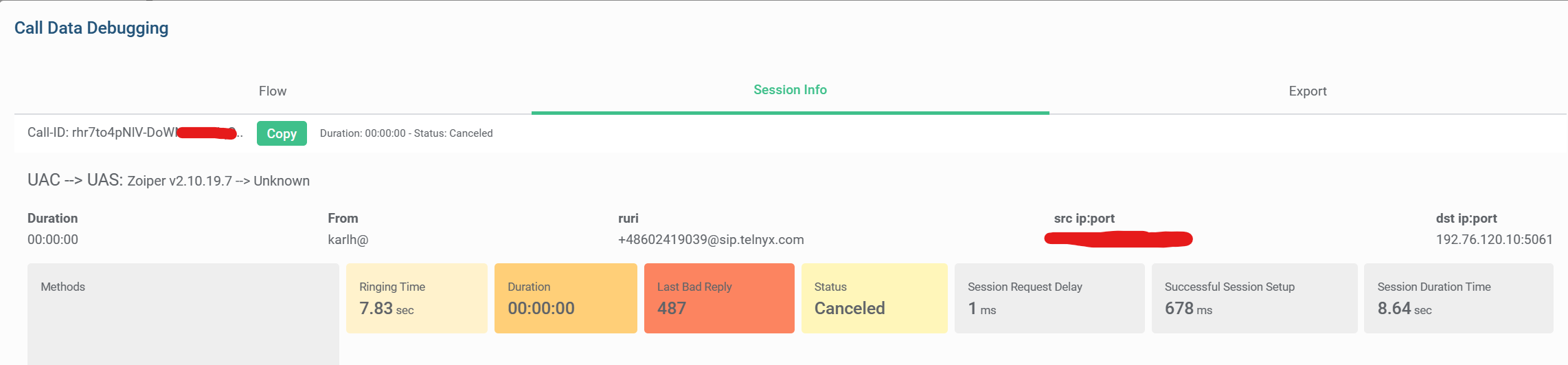

You can also check "Session Info" on the next tab or export PCAP data on the "Export" tab for sharing with your team.

Call Flow Debugging section.

Image 18 - PCAP Inspection
