Cisco: 68xx/88xx Setup
Cisco: 68xx/88xx Setup

Learn how to configure a Cisco 68xx/88xx series IP phone to worth with Telnyx.

C
Written by Customer Success
Updated over 10 months ago
Jump to Instructions

The Cisco 68xx and 88xx series are a great fit for businesses of all sizes seeking secure, high-quality, full-featured VoIP. Select models provide affordable entry to HD video and support for highly-active, in-campus mobile workers. This advanced series provides flexible deployment options for Cisco pre-approved third-party UCaaS providers

These multiplatform phones are designed for affordability. They deliver reliable, business-grade audio, with Gigabit Ethernet integration and low power usage. Ideal for customers with moderate to active VoIP needs, the 68xx/88xx series phones are supported on Cisco-approved third-party unified communications as a service (UCaaS) providers.

Additional documentation:

Instructions for setting up and configuring your Cisco 68xx/88xx

Note: The setup and configuration of the Cisco 68xx and 88xx series are identical. This guide will satisfy both.

In this activity you will:

  1. Get your device's IP address and log into the phone's web portal

  2. Configure a SIP extension

  3. (FOR TLS EXTENSIONS ONLY) Configure additional security settings

Pre-requisites

Video Walkthrough

Setting up your Telnyx SIP portal account so you can make and receive calls:

Note: Video walkthrough for Cisco 68xx or 88xx/Telnyx configuration coming soon. Check back as we update our docs.

1. Get your device's IP address and log into your phone's web portal

In this step, you'll obtain the IP address from your Cisco phone, which you'll need to log into the web portal in the next step.

  1. From your phone, click on the Menu button on the phone and navigate to Network Status >­ IPv4 Address and take note of the IP address on this screen. You'll need it next.

  2. On a computer connected to the same network as your phone, open a web browser and type http:// followed by the phone's IP address into the address bar of your browser.

  3. Log into the portal. Out of the box, you can just skip the login credentials the first time by pressing Skip.

Back to Top

2. Configure a SIP extension

In this section, you'll configure your extension and connect your phone to Telnyx.

  1. Click on the Voice tab at the top. Then click on the tab showing the extension you want to configure.

  2. Find the General and NAT Settings section and enter the following information:

    1. Line Enable: Yes

    2. NAT Mapping Enable: Yes

    3. NAT Keep Alive Enable: Yes

  3. Find the SIP Settings section and enter the following information:

    1. SIP Transport: UDP or TCP if you have not enabled TLS encryption. If you have, choose TLS.

    2. SIP Port: 5060 if you have not enabled TLS encryption. If you have, choose 5061.

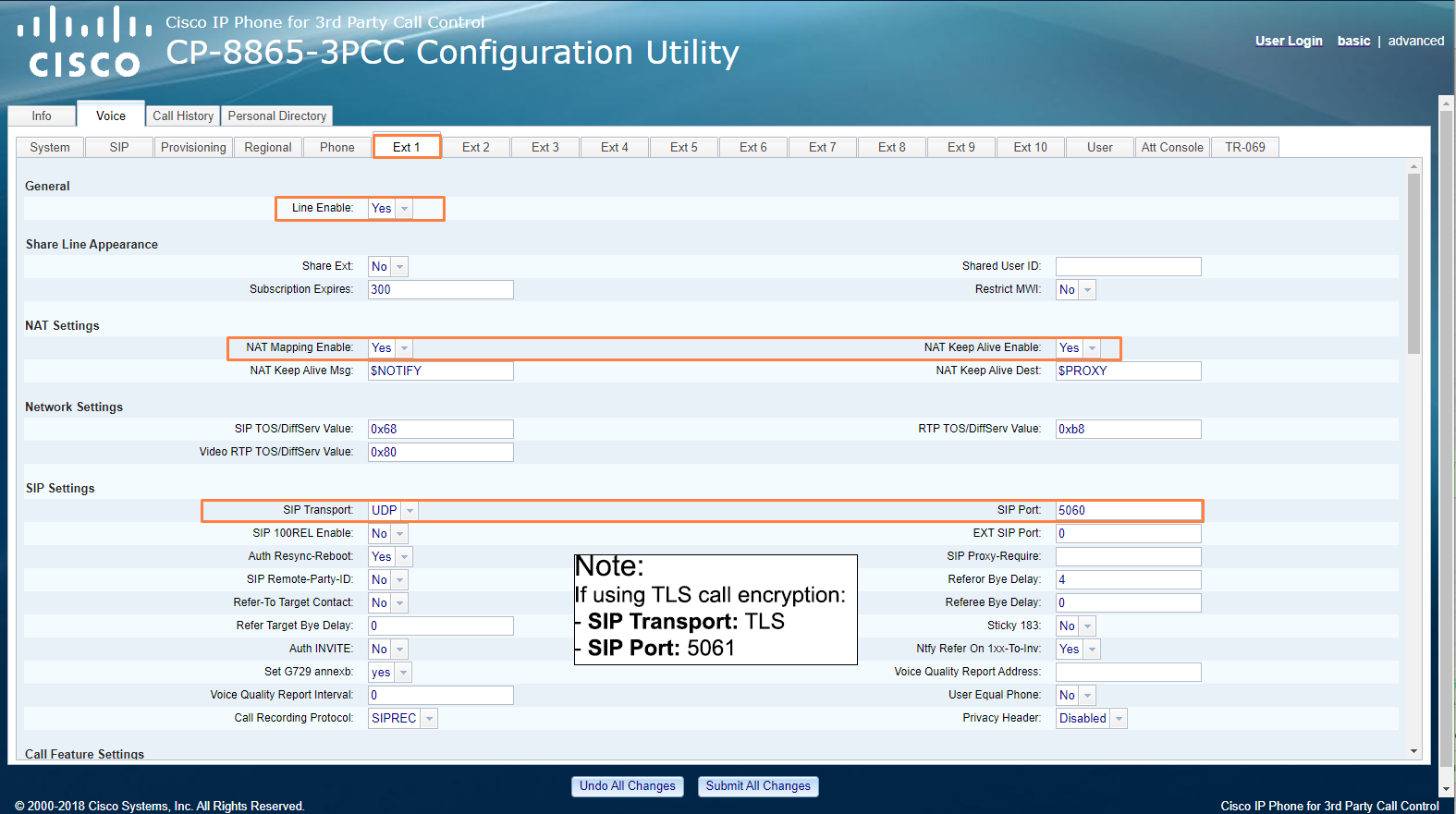

    General and NAT Settings section

  4. Find the Proxy and Registration section and enter the following information:

    1. Proxy: sip.telnyx.com

    2. Outbound Proxy: sip.telnyx.com

    3. Register: Yes

    4. Register Expires: 300

  5. Find the Subscriber Information section and enter the following information:

    1. Display Name: This is your caller ID. You can choose whatever you like, but keep in mind the following naming conventions:

      1. Caller ID Name should be in capital letters. This will appears more clearly/visible on some devices.

      2. You must NOT use any special characters, as they will not be displayed. Spaces are allowed.

      3. Some of regular Canadian providers will not show more than 15 characters. We suggest shrinking or adapt your caller ID.

    2. User ID: Your Telnyx account ID

    3. Password: Your Telnyx account password

    4. Auth ID: Your Telnyx account ID

    Subscriber Information section

  6. Find the Audio Configuration section and set your codecs in priority sequence that meets your needs.
    ​
    Telnyx supports the following audio codecs:

    1. ulaw(g711u)

    2. alaw(g711a)

    3. g722

    4. g729

    Additionally, if you are using TLS encryption, verify the following:

    1. Encryption Method: AES128

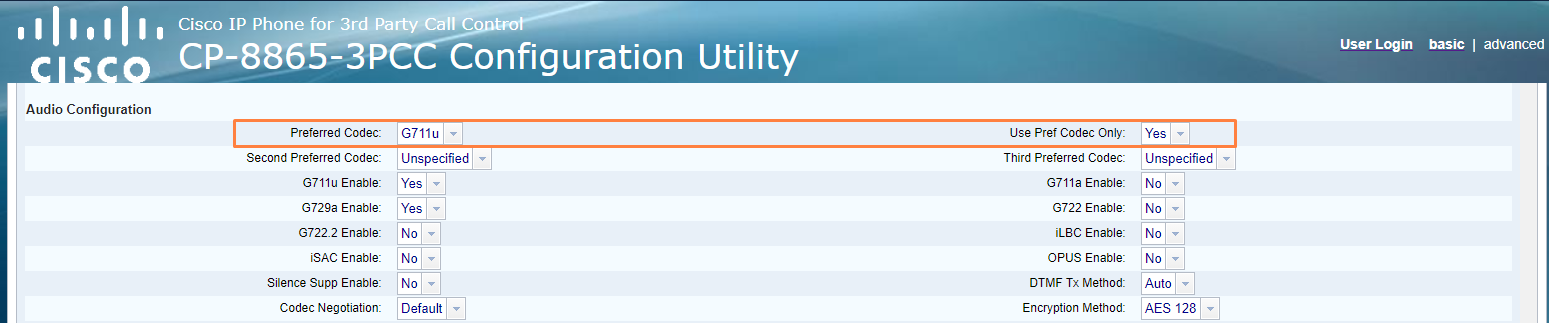

    Audio configuration section.

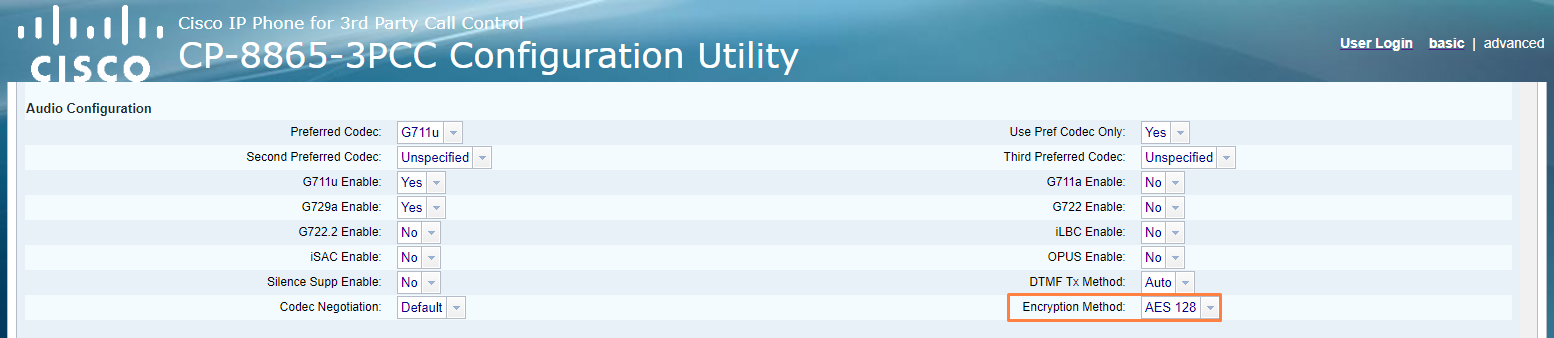

    Audio Configuration section

Back to Top

3. (FOR TLS EXTENSIONS ONLY) Additional security settings

If you have configured your profile for TLS call encryption, you'll need to ensure you have secure calling turned on. Additionally, some Cisco devices require you to have uploaded a TLS certificate (such as the 6821).

  1. Click on the Voice tab at the top. Then click on the User sub-tab.

  2. Find the Supplementary Services section and set the following:

    1. Secure Call Setting: Yes

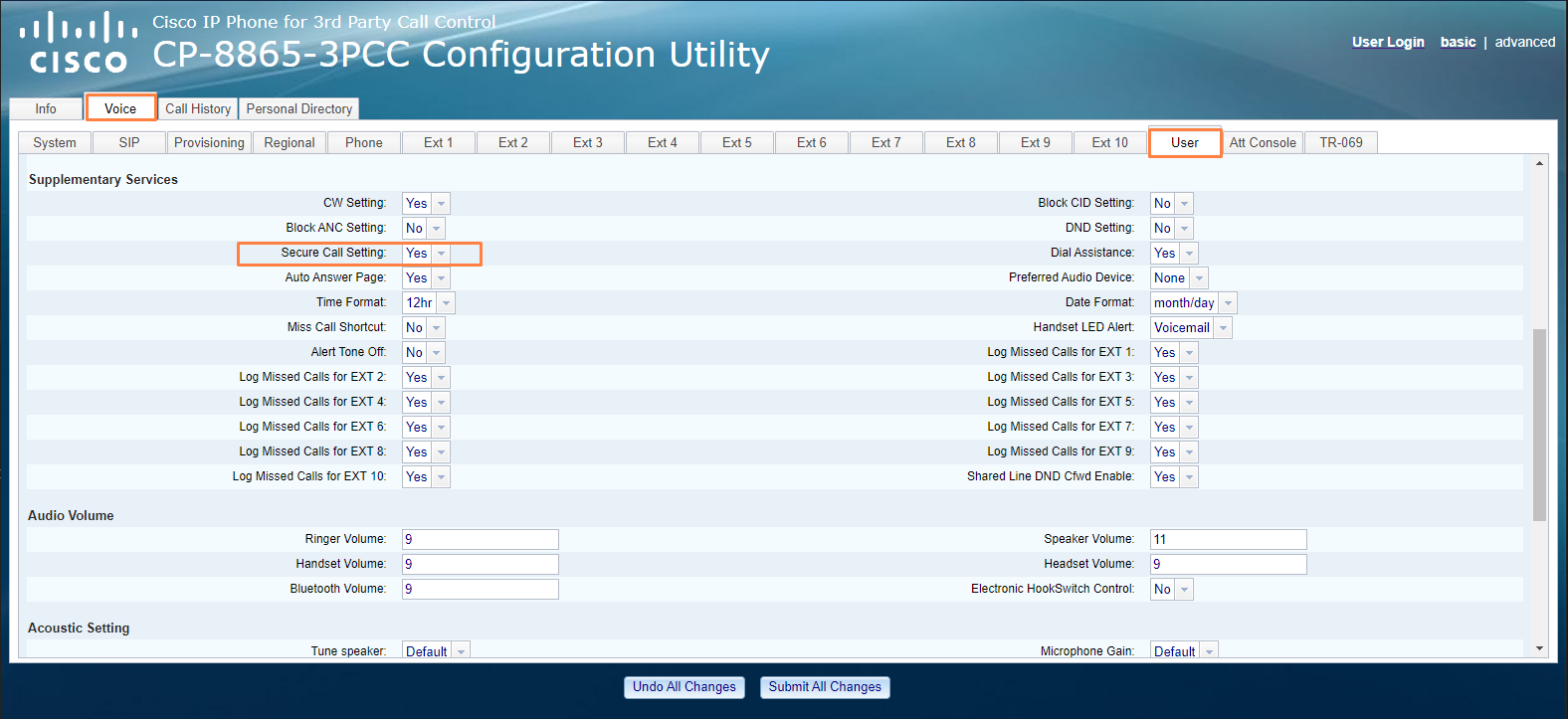

    Supplementary Services section

  3. You only need to complete this step if your device requires a TLS certificate. Find the certificate here if you have not done so already. While still on the Voice tab, click on the Provisioning sub-tab.

  4. Paste the certificate link in the Custom CA Rule field.
    ​

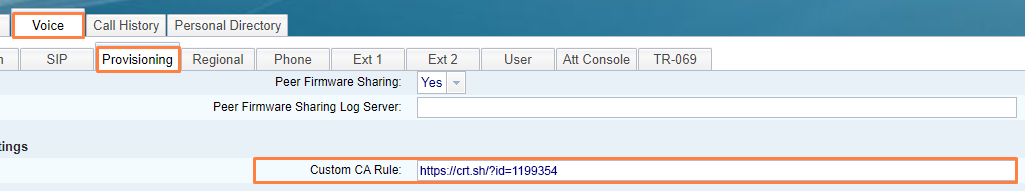

    Custom CA Rule field

  5. Once you're done, click the Submit All Changes button at the bottom of the screen. You'll get a Phone is updating configuration message. Do not unplug the phone during this state. After a few seconds, the device will be ready.

That's it! You've finished configuring your 68xx/88xx series phone profile, and can now start testing calls!
