Flyingvoice is a device and VoIP CPE solution provider. They offer a full range of VoIP products, such as VoIP phones, ATAs, gateways and routers for businesses and consumers. Flyingvoice's WiFI IP phones offer a wireless option, eliminating the requirement for a hard-wired internet connection in order to make/receive calls.
This guide will cover setup for the entire range of Flyingvoice IP phones.
Additional resources:
Flyingvoice FAQs (includes support link)
Instructions for setting up and configuring a Flyingvoice IP phone
In this activity you will:
(OPTIONAL) Set the multiple line button
(OPTIONAL) Set up a SIP trunk from your phone
Pre-requisites:
Ensure that your Telnyx Mission Command Portal is configured properly
Make sure to configure an extension (sub-account)
RECOMMENDED: Enable TLS to encrypt your traffic
Video Walkthrough
Setting up your Telnyx SIP portal account so you can make and receive calls:
Setting up a link to a provider from your Flyingvoice device:
Note: This Flyingvoice video shows configuration with 3CX PBX, so you will need to adapt this workflow for Telnyx. |
1. Physically connect your phone to a network
In this step, you'll learn about how to physically connect your phone to a network. You'll want to connect your phone to the same network as the computer you will use to configure it.

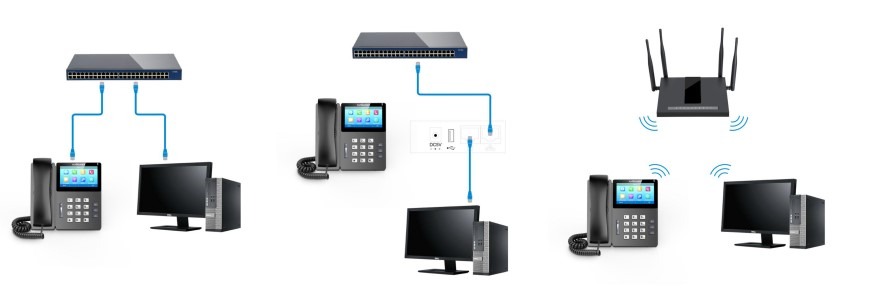

Here is the network topology you'll need to follow:
2. Get your device's IP address and log into the phone's web portal
In this step, you'll obtain the IP address from your phone's IP address, which you'll need to log into the web portal in the next step.
Turn on the phone. You'll see a welcome message on the LCD screen as it initializes. Lights on the phone will flash, that's just fine. The phone will initialize the network before loading the OS.
After this initial sequence, the phone will display the date and time, as well as the IP address of the phone. Take note of this, as you'll need it next.

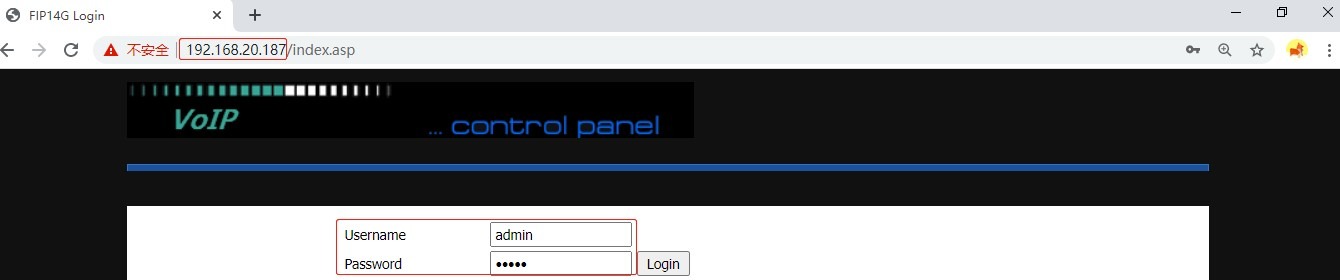

Open a web browser on a computer on the same network and enter the IP address you just obtained in step 2 into the address bar. Prepend it with http://
To log into the Flyingvoice web portal for the first time, use the default credentials (Don't forget to change them after you're in!)
Username: admin
Password: admin
2. Set up your Flyingvoice phone for traffic flow
In this step, you will set up your device and register it with Telnyx.

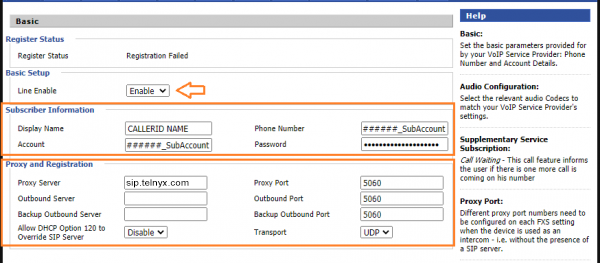

Click on the SIP Account tab at the top of the page.
Click on the Line 1 sub-tab below and configure the following information:
Line Enable: Enable
Display Name: This is your caller ID. You can choose whatever you like, but keep in mind the following naming conventions:
Caller ID Name should be in capital letters. This will appears more clearly/visible on some devices.
You must NOT use any special characters, as they will not be displayed. Spaces are allowed.
Some of regular Canadian providers will not show more than 15 characters. We suggest shrinking or adapt your caller ID.
Phone Number: Your Telnyx username
Account: Your Telnyx username
Password: Your Telnyx password
Proxy Server: sip.telnyx.com
Proxy Port: If you are using UDP transport, use port 5060. If you are using TLS transport, use port 5061.
Transport: By default, UDP is selected. If you enabled TLS and your account is configured to use SRTP encryption as part of your pre-requisite activities then you should choose TLS.
Voice Mailbox Numbers: *97
Register Refresh Interval (sec): 180
RTP Port Min: 100001
RTP Port Max: 200000
Click Save & Apply.
3. (OPTIONAL) Set the Multiple Line button
In this section, you will set up the button types you would like (i.e.: Line, BLF, Speed Dial etc.) This lets you set buttons on your phone and associate them with your Line 1 account.
Click on the Phone tab at the top of the page.
Click on the Line Key sub-tab below.
If you want to associate multiple buttons for your Line 1 account, locate your LineKey number in the Dsskey table and provide the following:
Type: Select Line
Line: select Line 1 (The SIP account we created in step 2).
Label: This is the Label of your button: it could be L1 or Line1 or your extension number.
Click Save.
4. (OPTIONAL) Set up your SIP trunk from your phone
If you prefer, you can configure your SIP trunk right from your device instead of logging into the web portal.
From your phone's screen, navigate to Menu > Advanced.
You'll need a password to continue. The default password is admin.
Continue to Accounts > Line 1.

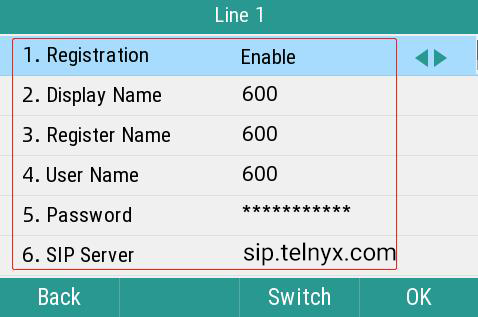

On this screen, enable Registration.
Enter the following information:
Phone Number: Your Telnyx username
Account:
Password:
Display Name: This is your caller ID. You can choose whatever you like, but keep in mind the following naming conventions:
Caller ID Name should be in capital letters. This will appears more clearly/visible on some devices.
You must NOT use any special characters, as they will not be displayed. Spaces are allowed.
Some of regular Canadian providers will not show more than 15 characters. We suggest shrinking or adapt your caller ID.
Register Name: Your Telnyx username
User Name: Your Telnyx username
Password: Your Telnyx password

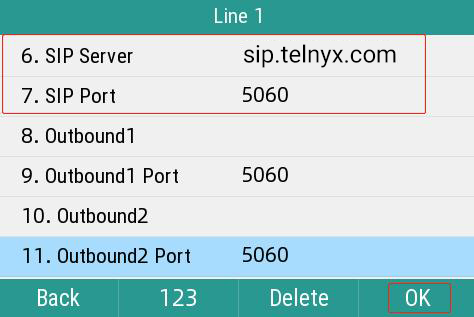

SIP Server: sip.telnyx.com
SIP Port: If you are using UDP transport, use port 5060. If you are using TLS transport, use port 5061.
Press OK.
That's it! You've finished configuring your Flyingvoice IP Phone, and can now start testing calls!
Additional Resources
Review our getting started with guide to make sure your Telnyx Mission Control Portal account is setup correctly!
