The Ribbon EdgeMarc 6000 is the newest addition to the Intelligent Edge family. It acts as a flexible demarcation/control point and service insertion device with physical telephony ports and power to run multiple virtual network functions (VNFs). Specifically designed for unified communications offerings, this network device can connect to a variety of digital and analog legacy systems. Its ARM®-based architecture provides dramatic value, performance and scale, while automated “zero touch” provisioning, remote monitoring and management reduce operating expense. The EdgeMarc 6000 has plenty of room to run VNFs to meet customer-specific needs.

Note: This configuration guide is also compatible with the EdgeMarc VOS 15.7.

Additional resources:

Instructions for Configuring an Edge SBC with Telnyx

In this activity you will:

Configure your SIP settings
Define your SIP trunk registration
Configure inbound rules
Configure outbound rules

Pre-requisites

Ensure that your Telnyx Mission Command Portal is configured properly
Purchase a DID
Set up your Telnyx SIP connection
Provision your number (Assign it to a SIP connection)
Create an outbound voice profile
Create an IP authentication connection on your Telnyx Mission Control Portal
RECOMMENDED: Enable TLS to encrypt your traffic
Have the SBC set up with your IP-PBX, with one or more clients configured and running calls between them

Video Walk-through

Setting up your Telnyx SIP portal account so you can make and receive calls:

Note: Video walkthrough for EdgeMarc/Telnyx configuration coming soon. Check back as we update our docs.

1. Configure your SIP settings

In this section, you'll learn how to configure your SIP settings through the Ribbon EdgeMarc portal.

Log into EdgeMarc.

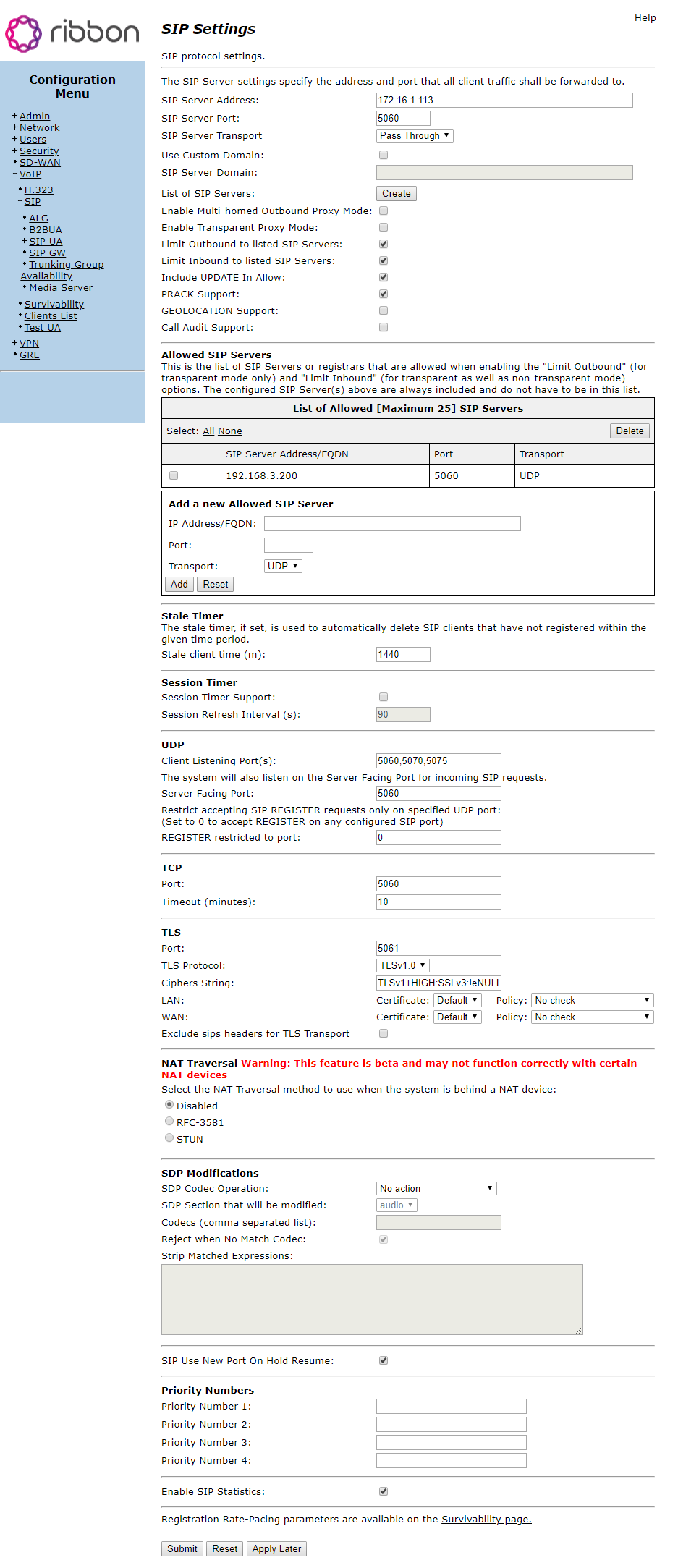

From the left-hand navigation, choose VoIP > SIP. You'll be taken to the SIP Settings page.
Find the SIP protocol settings section and provide the following information:
1. SIP Server Address: sip.telnyx.com
2. SIP Server Port: 5060
3. SIP Server Transport: UDP
4. Use Custom Domain: Check the box
5. SIP Server Domain: sip.telnyx.com
6. Limit Inbound to listed Proxies: Check the box
7. Limit Outbound to listed Proxies: Check the box

2. Define your SIP Trunk Registration

In this section, you'll configure your SIP trunk registration mode. You can then configure trunk registrations with the WAN side of the soft switch as-well as the registration mode for the PBX on the LAN side. This will allow for sending SIP messages from the WAN side inbound and for sending SIP messages to the WAN side outbound.

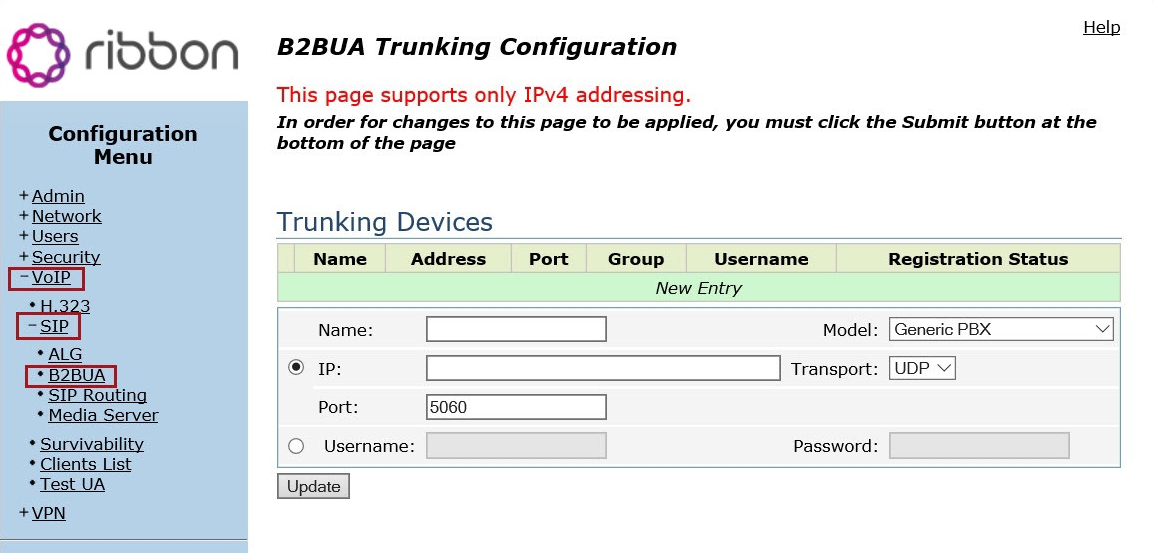

From the left-hand navigation, choose VoIP > SIP > B2BUA.
Find the Trunking Devices section.
Click the New Row button and provide the following information:
1. Name: Identifies the name of your trunking device
2. Model: Select your PBX from the drop-down list.
3. IP: Check the IP radio button. In the field beside it, enter the IP address of your PBX.
4. Transport: Choose a transport. Use TLS if you are using TLS encryption. Otherwise, choose UDP or TCP.
5. Port: 5060 (Unless you are using TLS, in which case, enter 5061)
Click Update to create the trunking device for PBX.
Then click Submit at the bottom of the page. This pushes the configuration to the EdgeMarc.

3. Configure inbound rules

In this section, you'll configure inbound rules and routing, which will allow for sending SIP messages from the EdgeMarc to the PBX.

From the left-hand navigation, choose VoIP > SIP > B2BUA and click on the Match tab.
Click New Row to create a new entry and provide the following information:
1. Direction: Inbound
2. Mode: BothModes
3. Default: Select radio button
4. Action: Inbound

4. Configure outbound rules

From the left-hand navigation, choose VoIP > SIP > B2BUA and click on the Match tab.
Click New Row to create a new entry and provide the following information:
1. Direction: Outbound
2. Mode: BothModes
3. Pattern: Select radio button and then select Calling from the drop-down menu.
4. Called/Calling Party: Depending on your preference, you can allow all callers by entering "." and alternately, ou can pattern-match on partial caller numbers such as 1312270X
5. Source: Any
6. Action: Outbound
Click Update.
Click Submit to send the configuration to EdgeMarc.

That's it! You've successfully configured your EdgeMarc SBC with Telnyx!
