Step 1: Telnyx Configuration with Oracle VMs
Reference the introduction to Telnyx Networking section located here: Telnyx Configuration

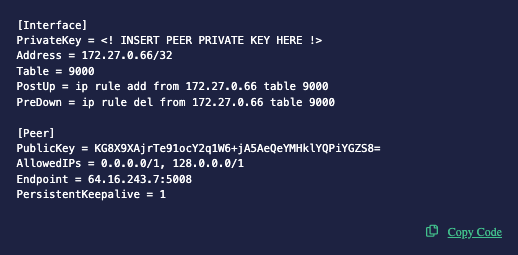

Copy and take note of the Peer Configuration file along with the private key that you got assigned from the above tutorial, it should look like the following:
Step 2: Create your Oracle Cloud Compute Instance
You should now go through and create your own Oracle Cloud VM Instance. A good overview and guide on how to do so can be found here written by n00.
It will guide you through the setup process as well as the installation of WireGuard which is what we will use to configure the Telnyx networking instance.
Step 3: Configuring WireGuard with Telnyx
We will first need to create a configuration file in the /etc/wireguard folder called wg0.conf. This is where we will place the configuration instructions that we generated from Step 1.
[Interface]
PrivateKey = private key for this machine
Address = IP address for WireGuard interface
PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE
ListenPort = 51280
[Peer]
PublicKey = public key for peer machine
AllowedIPs = IP address for peer WireGuard interface, additional CIDRs
PersistentKeepalive = 1
Notes on Step 3
If you have chosen an interface name different from wg0, please ensure that you modify the PostUp and PostDown lines accordingly. It's important to note that this configuration utilizes Network Address Translation (NAT) to present the VPN traffic as if it originates from the VPN instance within the VPC. This eliminates the need to disable source/destination checks or update routing tables.
Considering that my client devices are situated behind a NAT, I have included the PersistentKeepalive setting. While it may not be necessary for everyone, I anticipate that many individuals will find it beneficial.
Regarding the notation additional CIDRs mentioned earlier, if you desire other IP addresses from the peer's network to route through this connection, specify those addresses/networks here. This becomes particularly significant in the "client" side configuration, where you consolidate all traffic for a VPC (or a group of VPCs) through a single WireGuard node.
Step 4:
Additional Oracle NAT and Routing Configuration
If you've tried setting up WireGuard with Oracle Cloud before, you'll probably notice after setup that your WireGuard instance will not function due to server blocking on their side. This is due to Oracle specific configuration issues in relation to how they set up their NAT settings. To get around this and be able to connect, we will need to create and add-on two scripts. We can do so with the following steps:
Step 4.1
We need to update our wg0.conf file with the following:
PostUp = /etc/wireguard/helper/add-nat-routing.sh
PostDown = /etc/wireguard/helper/remove-nat-routing.sh
Step 4.2
We will create the following two above scripts in the /etc/wireguard/helper/ directory with execute permissions:
Script 1
- add-nat-routing.sh
#!/bin/bash
IPT="/sbin/iptables"
IPT6="/sbin/ip6tables"
IN_FACE="ens3" # NIC connected to the internet
WG_FACE="wg0" # WG NIC
SUB_NET="10.66.66.0/24" # WG IPv4 sub/net aka CIDR
WG_PORT="59075" # WG udp port
SUB_NET_6="fd42:42:42::/64" # WG IPv6 sub/net
## IPv4 ##
$IPT -t nat -I POSTROUTING 1 -s $SUB_NET -o $IN_FACE -j MASQUERADE
$IPT -I INPUT 1 -i $WG_FACE -j ACCEPT
$IPT -I FORWARD 1 -i $IN_FACE -o $WG_FACE -j ACCEPT
$IPT -I FORWARD 1 -i $WG_FACE -o $IN_FACE -j ACCEPT
$IPT -I INPUT 1 -i $IN_FACE -p udp --dport $WG_PORT -j ACCEPT
## IPv6 (Uncomment) ##
$IPT6 -t nat -I POSTROUTING 1 -s $SUB_NET_6 -o $IN_FACE -j MASQUERADE
$IPT6 -I INPUT 1 -i $WG_FACE -j ACCEPT
$IPT6 -I FORWARD 1 -i $IN_FACE -o $WG_FACE -j ACCEPT
$IPT6 -I FORWARD 1 -i $WG_FACE -o $IN_FACE -j ACCEPT
Script 2
- remove-nat-routing.sh
#!/bin/bash
IPT="/sbin/iptables"
IPT6="/sbin/ip6tables"
IN_FACE="ens3" # NIC connected to the internet
WG_FACE="wg0" # WG NIC
SUB_NET="10.66.66.0/24" # WG IPv4 sub/net aka CIDR
WG_PORT="59075" # WG udp port
SUB_NET_6="fd42:42:42::/64" # WG IPv6 sub/net
# IPv4 rules #
$IPT -t nat -D POSTROUTING -s $SUB_NET -o $IN_FACE -j MASQUERADE
$IPT -D INPUT -i $WG_FACE -j ACCEPT
$IPT -D FORWARD -i $IN_FACE -o $WG_FACE -j ACCEPT
$IPT -D FORWARD -i $WG_FACE -o $IN_FACE -j ACCEPT
$IPT -D INPUT -i $IN_FACE -p udp --dport $WG_PORT -j ACCEPT
# IPv6 rules (uncomment) #$IPT6 -t nat -D POSTROUTING -s $SUB_NET_6 -o $IN_FACE -j MASQUERADE
$IPT6 -D INPUT -i $WG_FACE -j ACCEPT
$IPT6 -D FORWARD -i $IN_FACE -o $WG_FACE -j ACCEPT
$IPT6 -D FORWARD -i $WG_FACE -o $IN_FACE -j ACCEPT
The first script will ensure that the traffic running from the VPN is correctly routed through the network on the Oracle Cloud servers while the second script correctly disables the routing configuration when the service is stopped.
A more detailed writeup of the above can be found here written elegantly by Vadim Smirnov.
Step 5: Test

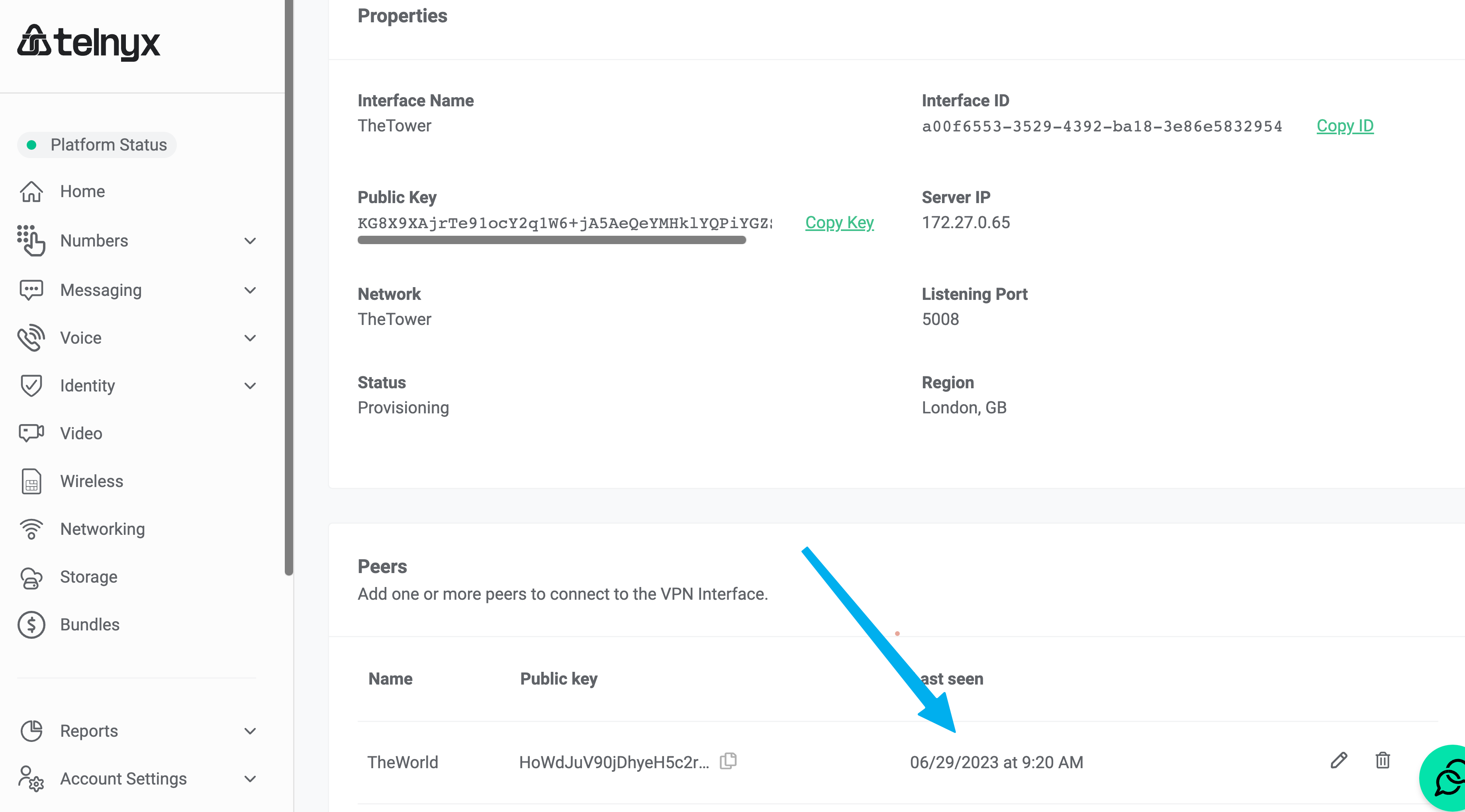

We can test to see if it's working by checking the portal and seeing the last seen status change:
or you can curl/trace into your server to confirm the Global IP that is configured to it.
Example Response:
root@MacBook-Pro % ping 172.27.1.17
PING 172.27.1.17 (172.27.1.17): 56 data bytes
64 bytes from 172.27.1.17: icmp_seq=0 ttl=53 time=184.512 ms
64 bytes from 172.27.1.17: icmp_seq=1 ttl=53 time=183.202 ms
64 bytes from 172.27.1.17: icmp_seq=2 ttl=53 time=183.365 ms
64 bytes from 172.27.1.17: icmp_seq=3 ttl=53 time=183.040 ms
64 bytes from 172.27.1.17: icmp_seq=4 ttl=53 time=183.310 ms
64 bytes from 172.27.1.17: icmp_seq=5 ttl=53 time=183.980 ms
64 bytes from 172.27.1.17: icmp_seq=6 ttl=53 time=183.457 ms
64 bytes from 172.27.1.17: icmp_seq=7 ttl=53 time=183.097 ms
^C
--- 172.27.1.17 ping statistics ---
8 packets transmitted, 8 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 183.040/183.495/184.512/0.471 ms
Next Steps
Congratulations! You have successfully connected an Oracle Cloud VM instance to the Telnyx Edge Routing Network to the configured IP in your portal.
If you have any further questions or would like to see more tutorials, feel free to reach out to our support team or our external Slack channel for help!
