Gigaset A510: Telnyx Setup

Learn how to use your Telnyx account to set up and configure a SIP profile on the Gigaset A510 IP phone

C
Written by Customer Success
Updated over a week ago

The Gigaset A510 IP is an exceptionally versatile VoIP phone with the ability to make up to 3 parallel calls, either via Internet or traditional landline. It allows a caller to switch between 2 VoIP calls and 1 fixed line call at the press of a button.

Additional documentation:


Instructions for setting up and configuring your Gigaset A510 IP

In this activity you will:

Pre-requisites

Video Walkthrough

Setting up your Telnyx SIP portal account so you can make and receive calls:

Note: Video walkthrough for Gigaset A510 IP/Telnyx configuration coming soon. Check back as we update our docs.

1. Get your device's IP address and log into the Gigaset phone's web portal

In this step, you'll obtain the IP address from your A510, which you'll need to log into the web portal in the next step.

  1. Press the paging button on your device's base station. This will display the device's IP address. Take note of this as you'll need it next.

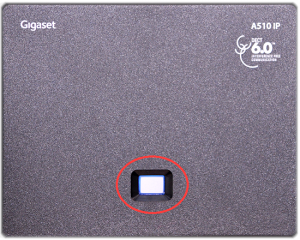

    Paging button.

  2. On a computer connected to the same network as your phone, open a browser and type http:// followed by the IP address you obtained in step 1.

  3. The first screen that appears will require you to enter a system PIN. The default PIN for all new devices is 0000.

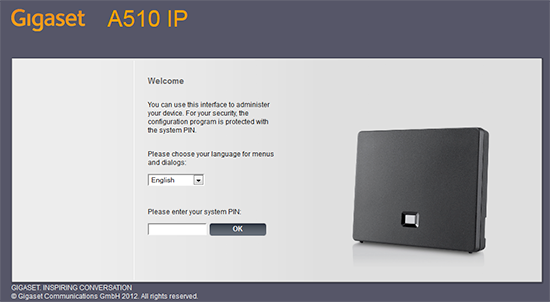

    System PIN addition section.

  4. Click OK.

2. Configure your IP phone

  1. From here, click on the Settings tab at the top of the page.

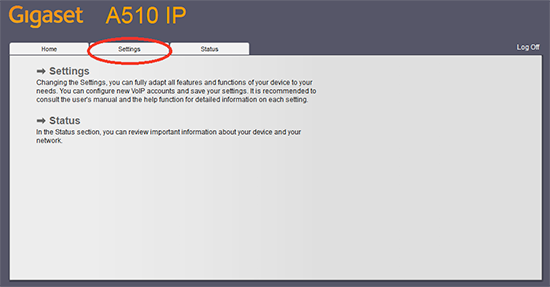

    Settings tab section of the Gigaset.

  2. Click on the Telephony link on the left-hand navigation to expand this menu. Click on Connections in the Telephony sub-menu and click Edit next to the line you want to configure.

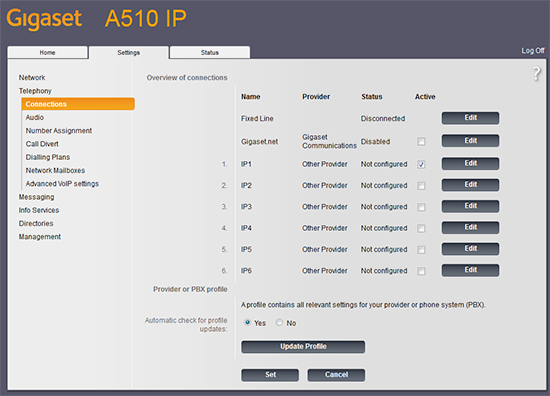

    Connections section in the Telephony hub.

  3. Enter the following information:

    1. Connection Name or Number: Create a connection name suitable for your connection.

    2. Connection Name or Number: Choose a name that makes sense for the connection you're setting up.

    3. Authentication Name: Your Telnyx SIP account username

    4. Authentication password: Your Telnyx SIP account password

    5. Username: Your Telnyx SIP account username

    6. Display name: Your Telnyx SIP account username

    7. Domain: sip.telnyx.com

    8. Proxy server address: sip.telnyx.com

    9. Proxy server port: If you are using UDP transport, use port 5060. If you are using TLS transport, use port 5061.

    10. Registration server: sip.telnyx.com

    11. Registration server port: If you are using UDP transport, use port 5060. If you are using TLS transport, use port 5061.

    12. Registration refresh time: 300

    13. STUN enabled: No

    14. STUN server address: (Leave Empty)

    15. Outbound proxy mode: Always

    16. Outbound server address: sip.telnyx.com

    17. Outbound proxy port: If you are using UDP or TCP transport, use port 5060. If you are using TLS transport, use port 5061.

    18. Select Network Protocol: By default, UDP is selected. If you enabled TLS and your account is configured to use SRTP encryption as part of your pre-requisite activities then you should choose TLS.

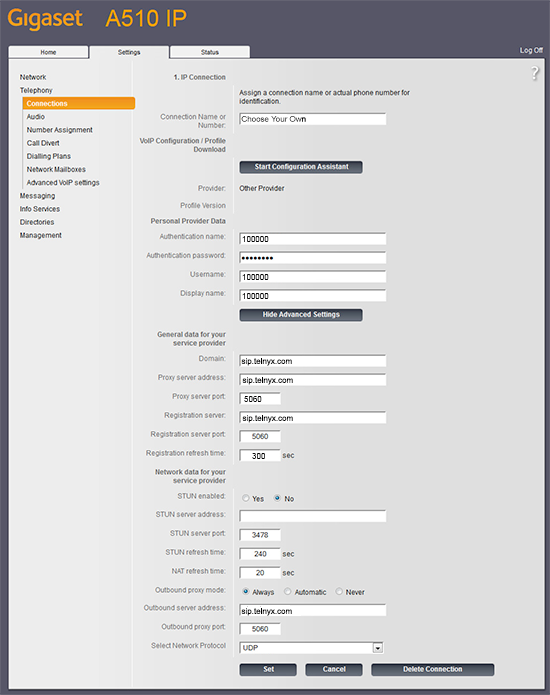

    A screenshot of the UDP setup.

    *Note that this screenshot shows a UDP setup.
    โ€‹

  4. Still in the Telephony section, click on Number Assignment and find the Handsets section. Look for the line you just created (It will have the same name as the Connection Name or Number field you configured previously.

    1. for outgoing calls: Radio button should be CHECKED

    2. for incoming calls: Checkbox should be CHECKED

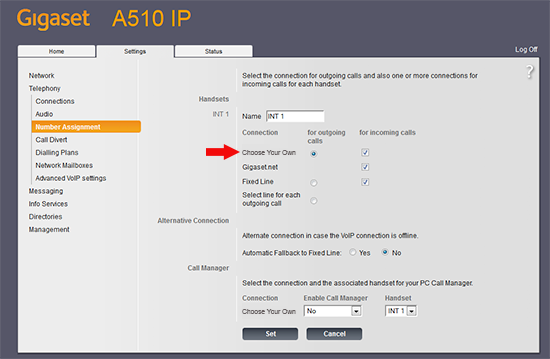

    A510 IP settings.

That's it! You've finished configuring your Gigaset A510 IP profile, and can now start testing calls!
