Bria Solo (also known as X-Lite) is a softphone client, created by counterpath and developed for both Windows and Mac operating systems to help users transition to VoIP.
Note: Bria Solo/X-Lite can be used on Windows or Mac OS platforms only. |
For Bria Solo documentation, see:
Bria Solo/X-Lite technical documentation
Bria Solo/X-Lite support
Instructions for Configuring Bria Solo with Telnyx
In this activity you will:
Video Walkthrough
Coming soon! Check back frequently as we are updating our documentation.
Pre-Requisites:
Have already created a credentials-based connection on your Telnyx Mission Control Panel account, have assigned this connection to a DID and outbound profile in order to make or receive calls
1. Set up a SIP account on Bria Solo
Open Bria Solo/X-Lite.

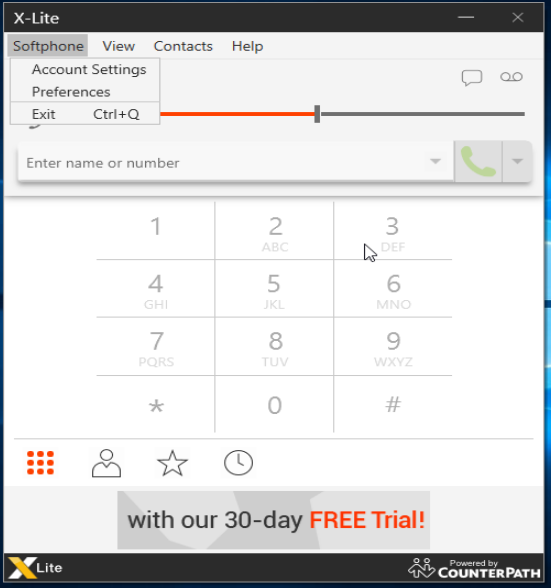

From the main menu, choose Softphone > Account Settings.

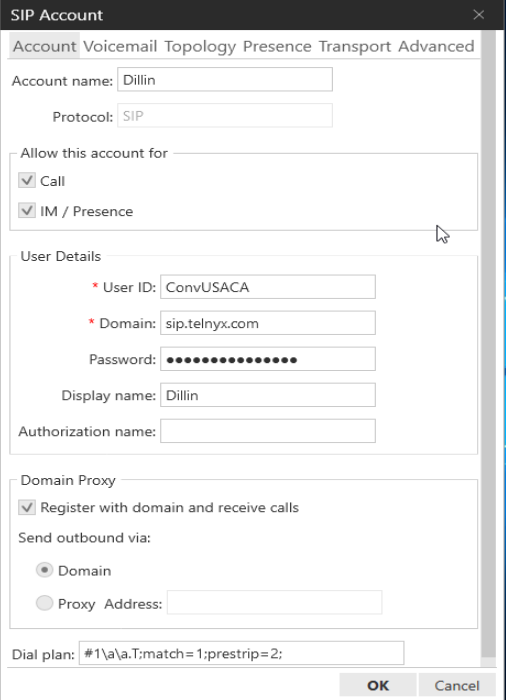

From the Accounts window, you'll need to fill out the following fields:
Account Name section:
Account Name: Used to identify the account. Make it something meaningful to you.
Protocol: This is read-only and will always be SIP.
Allow this Account For section:
Calls (Windows) or Used for Call (Mac): Check box for account be used for outbound calls
IM/Presence (Windows) or Presence (Mac): Check box for account to be used to share your online presence and send IMs
User Details section:
User ID: The account ID for the softphone. Provided by Telnyx
Domain: sip.telnyx.com
Password: The password for the softphone. Provided by Telnyx
Display Name: The name displayed in the Bria title bar. This is the name remote parties will see
Authorization Name: Complete this field ONLY if Telnyx gave you an authorization name. Typically this won't be the case unless you need to allow user IDs that are easy to guess. In that case, the Authorization name will be used in place of the User ID to register the SIP account
Domain Proxy section:
Register with domain and receive calls: If checked, you are opting to receive incoming calls. If your service level does not include the ability to receive incoming calls, CLEAR this field. Otherwise, it may prevent the account from registering
Send outbound via: Select this field if Telnyx requires that traffic be directed to proxies that are discovered via the domain. If you select this field, you must also complete the Address field with IP address provided by Telnyx.
Dial Plan section:
This contains information about the numbers used by Telnyx. This is provided by Telnyx and is read-only

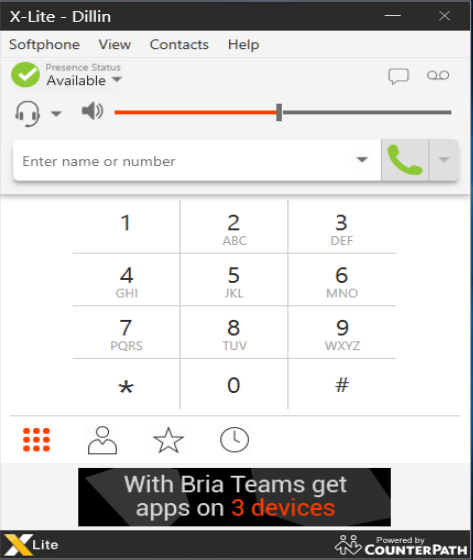

Hit OK to register the softphone with sip.telnyx.com. If everything is correct, you'll see that the account has been enabled successfully.
That's it, you've now completed the configuration of your X-Lite softphone client and can now make and receive calls by using Telnyx as the SIP provider.
Additional Resources
Review our getting started guide to make sure your Telnyx Mission Control Portal account is set up correctly.
Additionally you can check out:
Counterpath's help section for extra support with Bria Solo.
Counterpath's support for Bria Solo/X-Lite
